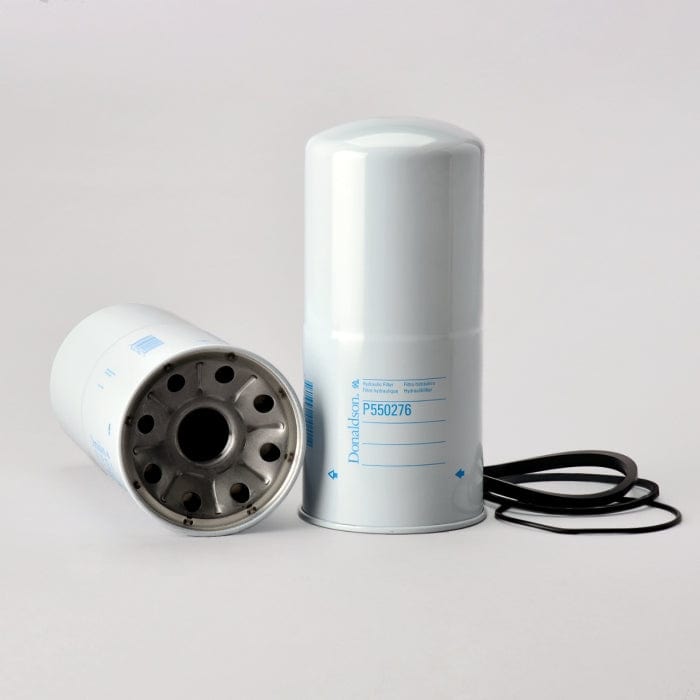

Hydraulic Filter, Spin-On - Donaldson P550276
Hydraulic Filter, Spin-On - Donaldson P550276
Regular price
Ā£84.74
Regular price
Sale price
Ā£84.74
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550276
Hydraulic Filter, Spin-On| Outer Diameter | 5.04 inch (128 mm) |
| Thread Size | 1 1/2-16 UN |
| Length | 10.66 inch (270.8 mm) |
| Gasket OD | 5.04 inch (128 mm) |
| Gasket ID | 4.76 inch (120.9 mm) |
| Efficiency Beta 2 | 150 micron |
| Style | Spin-On |
| Series | W023, SP50/60, SP80/90, SP100/120 |
| Media Type | Wire Mesh |
| Primary Application | ZINGA LE100 |
Share
Collapsible content
Specifications
Attributes
- Mesh Rating: 150 micron
- Outer Diameter: 128 mm (5.04 inch)
- Thread Size: 1 1/2-16 UN
- Length: 270.8 mm (10.66 inch)
- Gasket OD: 128 mm (5.04 inch)
- Gasket ID: 120.9 mm (4.76 inch)
- Efficiency Beta 2: 150 micron
- Style: Spin-On
- Series: W023
- SP50/60:
- SP80/90:
- SP100/120:
- Media Type: Wire Mesh
- Primary Application: ZINGA LE100
Packaged Dimensions
- Packaged Length: 0.118 m (4.70 inch)
- Packaged Width: 0.128 m (5.10 inch)
- Packaged Height: 0.263 m (10.50 inch)
- Packaged Weight: 1.532 kg (3.38 lb)
- Packaged Volume: 0.004 m3 (0.15 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-09
- HTS Code: 8421298090
- UPC Code: 742330042014
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN PARTS | 91608 | |
| BIG A | 91608 | |
| CASE/CASE IH | 73133001 | |
| CATERPILLAR | 9U6985 | |
| CHIP BLASTER | 3536 | |
| CMI | 556500002001 | |
| FIAT | 73133001 | |
| FORD | 9576P550276 | |
| FPC | FPE70100M | |
| INTERNATIONAL | 73133001 | |
| MP FILTRI | CG150M90A | |
| MP FILTRI | CSG150M125A | |
| MP FILTRI | CSG150M90A | |
| SNORKEL | 5080046 | |
| TIGERCAT | AY059 | |
| VMC | HF550276 |
