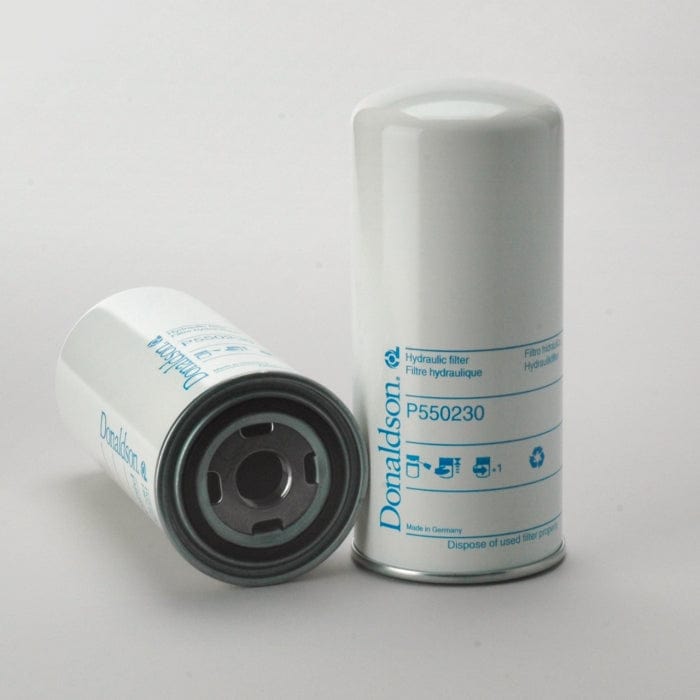

Hydraulic Filter, Spin-On - Donaldson P550230

Attributes

• Outer Diameter: 93 mm (3.82 inch)
• Thread Size: 1-12 UN
• Length: 213 mm (8.39 inch)
• Gasket OD: 71 mm (2.8 inch)
• Gasket ID: 62 mm (2.44 inch)
• Efficiency Beta 2: 20 micron
• Efficiency Beta 1000: 50 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 2.2 bar (32 psi)
• Bypass Valve Setting HR: 2.6 bar (38 psi)
• Style: Spin-On
• Media Type: Cellulose
• Primary Application: ZF 0750131007

Packaged Dimensions

• Packaged Length: 0.099 m (3.94 inch)
• Packaged Width: 0.099 m (3.94 inch)
• Packaged Height: 0.217 m (8.66 inch)
• Packaged Weight: 0.877 kg (1.93 lb)
• Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

• Country of Origin: Germany
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330041673
