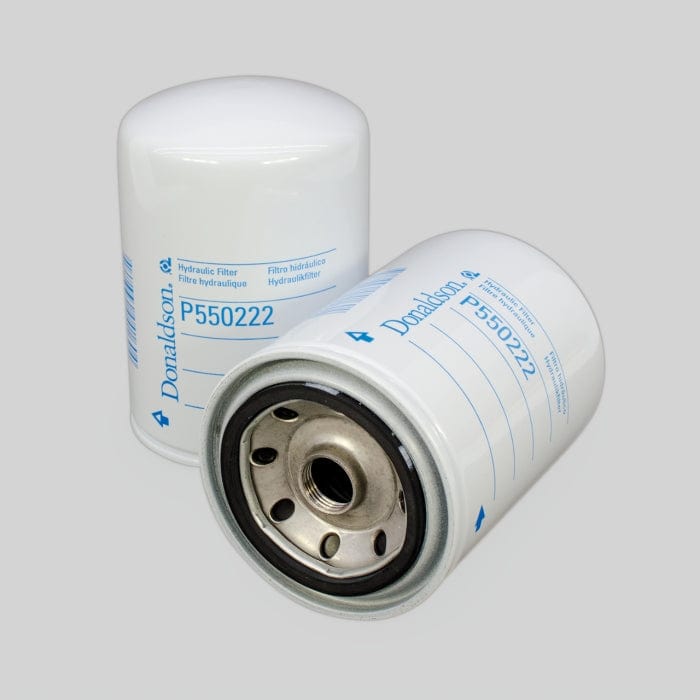

Hydraulic Filter, Spin-On - Donaldson P550222

Attributes

• Outer Diameter: 93 mm (3.66 inch)
• Thread Size: 3/4-16 UN
• Length: 136.2 mm (5.36 inch)
• Gasket OD: 72 mm (2.83 inch)
• Gasket ID: 62 mm (2.44 inch)
• Efficiency Beta 2: 17 micron
• Efficiency Test Std: SAE J1858
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 0.5 bar (7 psi)
• Bypass Valve Setting HR: 0.7 bar (10 psi)
• Style: Spin-On
• Media Type: Cellulose
• Primary Application: ALLISON 25010543

Packaged Dimensions

• Packaged Length: 0.093 m (3.70 inch)
• Packaged Width: 0.075 m (3.00 inch)
• Packaged Height: 0.125 m (5.00 inch)
• Packaged Weight: 0.520 kg (1.15 lb)
• Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

• Country of Origin: Mexico
• NMFC Code: 069100-09
• HTS Code: 8421298090
• UPC Code: 742330041604
