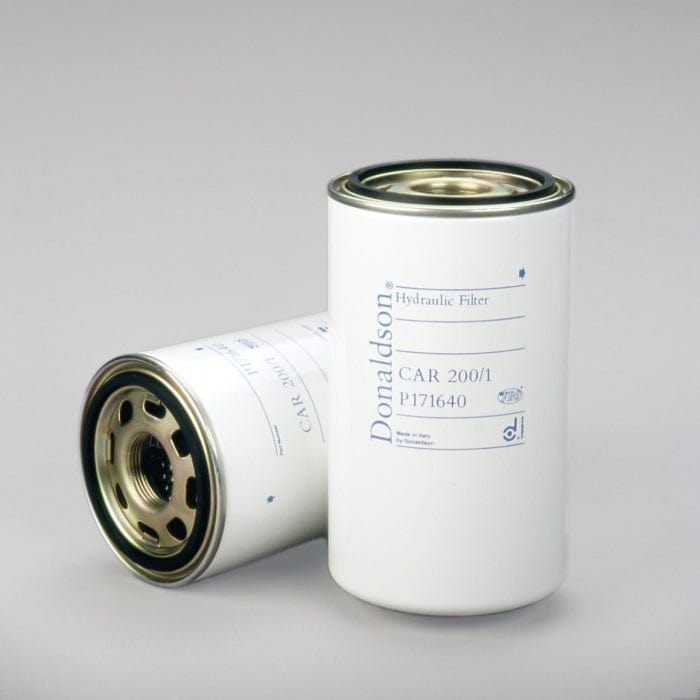

Hydraulic Filter, Spin-On - Donaldson P171640
Hydraulic Filter, Spin-On - Donaldson P171640
Regular price
£48.32
Regular price
Sale price
£48.32
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P171640
Hydraulic Filter, Spin-On| Outer Diameter | 4.96 inch (126 mm) |
| Thread Size | 1 1/4 BSP/G |
| Length | 9.29 inch (236 mm) |
| Gasket OD | 4.25 inch (108 mm) |
| Gasket ID | 3.86 inch (98 mm) |
| Efficiency Beta 2 | 10 micron |
| Style | Spin-On |
| Series | TT15/30/60 |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 126 mm (4.96 inch)
- Thread Size: 1 1/4 BSP/G
- Length: 236 mm (9.29 inch)
- Gasket OD: 108 mm (4.25 inch)
- Gasket ID: 98 mm (3.86 inch)
- Efficiency Beta 2: 10 micron
- Style: Spin-On
- Series: TT15/30/60
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.148 m (5.91 inch)
- Packaged Width: 0.148 m (5.91 inch)
- Packaged Height: 0.276 m (11.02 inch)
- Packaged Weight: 1.497 kg (3.30 lb)
- Packaged Volume: 0.006 m3 (0.22 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330112717
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| KOMATSU | 41760A1140 | |
| LHA | TTE6010 | |
| MP FILTRI | CTT150P10A | |
| MP FILTRI | CT150P10A | |
| PREVOST CAR | 194742 |
