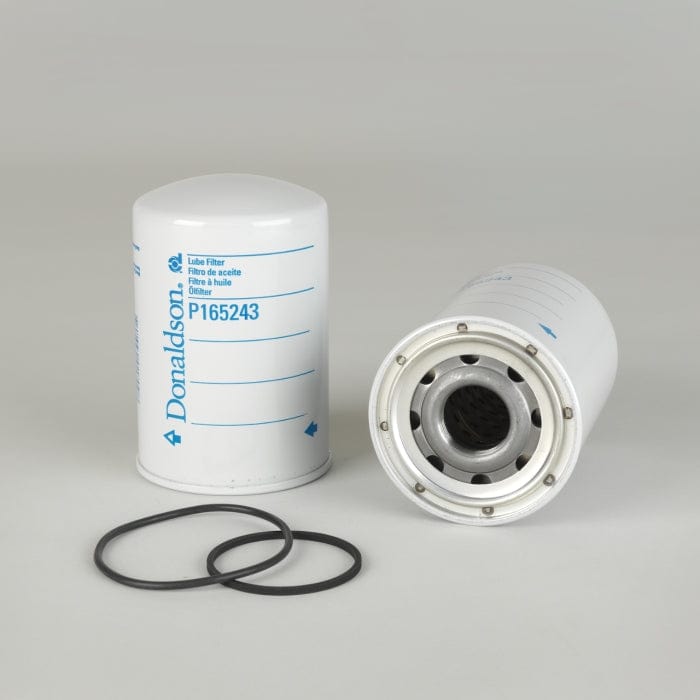

Hydraulic Filter, Spin-On - Donaldson P165243
Hydraulic Filter, Spin-On - Donaldson P165243
Regular price
£28.68
Regular price
Sale price
£28.68
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P165243
Hydraulic Filter, Spin-On| Outer Diameter | 3.90 inch (99 mm) |
| Thread Size | 1 5/16-12 UN |
| Length | 5.75 inch (146.05 mm) |
| Gasket OD | 3.50 inch (89 mm) |
| Gasket ID | 3.23 inch (82 mm) |
| Efficiency Beta 2 | 7 micron |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | CASE/CASE IH D59062 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 99 mm (3.90 inch)
- Thread Size: 1 5/16-12 UN
- Length: 146.05 mm (5.75 inch)
- Gasket OD: 89 mm (3.50 inch)
- Gasket ID: 82 mm (3.23 inch)
- Efficiency Beta 2: 7 micron
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: CASE/CASE IH D59062
Packaged Dimensions
- Packaged Length: 0.100 m (4.00 inch)
- Packaged Width: 0.100 m (4.00 inch)
- Packaged Height: 0.153 m (6.10 inch)
- Packaged Weight: 0.513 kg (1.13 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421298090
- UPC Code: 742330017098
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 2093 | |
| AC DELCO | PF854 | |
| ALLIS-CHALMERS | 2017858 | |
| ALLIS-CHALMERS | 20177895 | |
| ALLIS-CHALMERS | 2017789 | |
| ALLIS-CHALMERS | 4905902 | |
| AMERICAN MOTORS CORPORATION | SFO0282 | |
| AMERICAN PARTS | 2023 | |
| AMERICAN PARTS | 92422 | |
| BAKER | 737AN1 | |
| BARBER-GREENE | 10R59 | |
| BARBER-GREENE | 4512175110 | |
| BARBER-GREENE | 4512175140 | |
| BIG A | 92422 | |
| BIG A | 92650 | |
| CASE/CASE IH | D59062 | |
| CATERPILLAR | 3I0675 | |
| CHAMPION ROAD | 10924 | |
| CHAMPION ROAD | 11439 | |
| COOPERS | HEM6070 | |
| DANA | 621005 | |
| DANA | 621000 | |
| DANA | F501 | |
| DANA | F50125 | |
| EATON | 515303801 | |
| EXMAN | SFO0282 | |
| FIAT | 72017789 | |
| FIAT | 72017858 | |
| FIAT | 2017858 | |
| FORD | 9576P165243 | |
| JACOBSEN | 353937 | |
| KRALINATOR | L146 | |
| LOESING | 20170 | |
| LOESING | 020170 | |
| MARVEL | 4512175125 | |
| MARVEL | 4512175110 | |
| MARVEL | 4512171110 | |
| MARVEL | 291000 | |
| MARVEL | 272SERIES | |
| MARVEL | 272 | |
| MARVEL | M32981110 | |
| MARVEL | 4552177110 | |
| MARVEL | 452177110 | |
| MARVEL | M4123 | |
| MARVEL | 4512177120 | |
| MARVEL | 4512177110 | |
| MARVEL | M37547120 | |
| MARVEL | 4512175140 | |
| MARVEL | M2425 | |
| P.B.R. | BC109610 | |
| STEIGER | 28007 | |
| TOTAL SOURCE | AC4905902 | |
| TOWMOTOR | 972415 | |
| VMC | HF165243 | |
| WALGAHN-MOTORENTECHN | 811010 | |
| WALGAHN-MOTORENTECHN | 00811010 | |
| WHITE | 207300253 | |
| WHITE | 515303801 | |
| YALE | 515303801 | |
| YALE | 513303801 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ALLIS-CHALMERS 500 | - | FORKLIFT | - | - 500 | - |
| ALLIS-CHALMERS 600 | - | FORKLIFT | - | - 600 | - |
| ALLIS-CHALMERS 615 | - | BACKHOE LOADER | - | - 615 | - |
| ALLIS-CHALMERS 615 | - | BACKHOE LOADER | - | - 615 | - |
| ALLIS-CHALMERS I40 | - | TRACTOR | - | - I40 | - |
| ALLIS-CHALMERS I400 | - | TRACTOR | - | - I400 | - |
| ALLIS-CHALMERS I60 | - | TRACTOR | - | - I60 | - |
| ALLIS-CHALMERS I600 | - | TRACTOR | - | - I600 | - |
| ALLIS-CHALMERS I600D | - | TRACTOR | - | - I600D | - |
| ALLIS-CHALMERS I60D | - | TRACTOR | - | - I60D | - |
| BARBER-GREENE SA41 | - | ROAD EQUIPMENT | - | INTERNATIONAL UB264 | - |
| BARBER-GREENE SA41 | - | ROAD EQUIPMENT | - | INTERNATIONAL UC263 | - |
| BARBER-GREENE SB41 | - | ROAD EQUIPMENT | - | INTERNATIONAL UB264 | - |
| CASE/CASE IH 1816 | - | SKID STEER LOADER | - | - 1816 | - |
| CASE/CASE IH 1816B | - | SKID STEER LOADER | - | - 1816B | - |
| CASE/CASE IH 1816C | - | SKID STEER LOADER | - | - 1816C | - |
| CASE/CASE IH 850D | - | TRACTOR TRACKED | - | CASE/CASE IH A336BD | - |
| GROVE RT48 | - | CRANE MOBILE | - | FORD 6 CYL | - |
| GROVE RT49 | - | CRANE MOBILE | - | FORD 6 CYL | - |
| JOHN DEERE 52 | - | COMBINE | - | - 52 | - |
