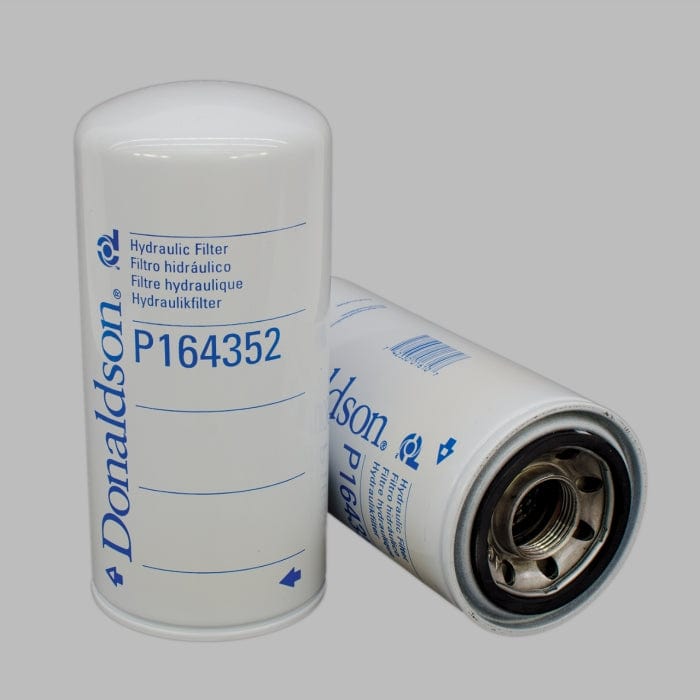

Hydraulic Filter, Spin-On - Donaldson P164352
Hydraulic Filter, Spin-On - Donaldson P164352
Regular price
£19.20
Regular price
Sale price
£19.20
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P164352
Hydraulic Filter, Spin-On| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1 1/4-12 UN |
| Length | 7.87 inch (200 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency Beta 2 | 17 micron |
| Efficiency Beta 1000 | 40 micron |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | INGERSOLL RAND 35296920 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1 1/4-12 UN
- Length: 200 mm (7.87 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency Beta 2: 17 micron
- Efficiency Beta 1000: 40 micron
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: INGERSOLL RAND 35296920
Packaged Dimensions
- Packaged Length: 0.108 m (4.30 inch)
- Packaged Width: 0.108 m (4.30 inch)
- Packaged Height: 0.238 m (9.50 inch)
- Packaged Weight: 0.656 kg (1.45 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330016107
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1120 | |
| AMERICAN CRANE CORPORATION | 1039857 | |
| AMERICAN MOTORS CORPORATION | SFH4352 | |
| AMERICAN PARTS | 2176 | |
| AMERICAN PARTS | 92826 | |
| BIG A | 92826 | |
| CATERPILLAR | 3I0608 | |
| CHARDONNET | 7216435200 | |
| COLT | 124331050 | |
| COMPAIR | 438371 | |
| COOPERS | HSM6046 | |
| COOPERS | HSM6064 | |
| EXMAN | SFH4352 | |
| FORD | 9576P164352 | |
| GREYFRIARS | HS7631 | |
| GROVE | 7437000134 | |
| GROVE | 9304100081 | |
| GROVE | 250005220 | |
| HAVAM | HD8825 | |
| INGERSOLL RAND | 35296920 | |
| JOY | 122833713 | |
| JOY | 1228733713 | |
| KRALINATOR | L1826 | |
| LEROI | 438371 | |
| LOESING | 21770 | |
| LOESING | 021770 | |
| MANITOU | 554951 | |
| MP FILTRI | CG070P25A | |
| QUINCY COMPRESSOR | 123221050 | |
| QUINCY COMPRESSOR | 124334050 | |
| QUINCY COMPRESSOR | 124331050 | |
| SULLAIR | 02250154506 | |
| SULLIVAN PALATEK | 19005200001 | |
| TEREX | 1039857 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687196 | |
| VMC | HF164352 | |
| WALGAHN-MOTORENTECHN | 810978 | |
| WALGAHN-MOTORENTECHN | 00810978 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| GROVE MZ48B | - | CRANE MOBILE | - | - MZ48B | - |
| INGERSOLL RAND 825 | - | COMPRESSOR | - | - 825 | - |
| INGERSOLL RAND ECM660 III | - | CONSTRUCTION EQUIPMENT | - | - ECM660 III | - |
| INGERSOLL RAND I85 | - | COMPRESSOR | - | - I85 | - |
| INGERSOLL RAND P130WJD | - | COMPRESSOR | - | JOHN DEERE 3179D | - |
| INGERSOLL RAND P160WJD | - | COMPRESSOR | - | JOHN DEERE 3179D | - |
| INGERSOLL RAND P175W | - | COMPRESSOR | - | - P175W | - |
| INGERSOLL RAND P175WD | - | COMPRESSOR | - | DEUTZ F3L912 | - |
| INGERSOLL RAND P175WJD | - | COMPRESSOR | - | JOHN DEERE 3179D | - |
| INGERSOLL RAND P180WD | - | COMPRESSOR | - | DEUTZ F4L1011 | - |
| INGERSOLL RAND P185AWJD | - | COMPRESSOR | - | - P185AWJD | - |
| INGERSOLL RAND P250BWJD | - | COMPRESSOR | - | - P250BWJD | - |
| INGERSOLL RAND P250CWJD | - | COMPRESSOR | - | - P250CWJD | - |
| INGERSOLL RAND P250WD | - | COMPRESSOR | - | DEUTZ F4L912 | - |
| INGERSOLL RAND SP-100 | - | COMPRESSOR | - | - SP-100 | - |
| QUINCY COMPRESSOR QS235 | - | COMPRESSOR | - | - QS235 | - |
