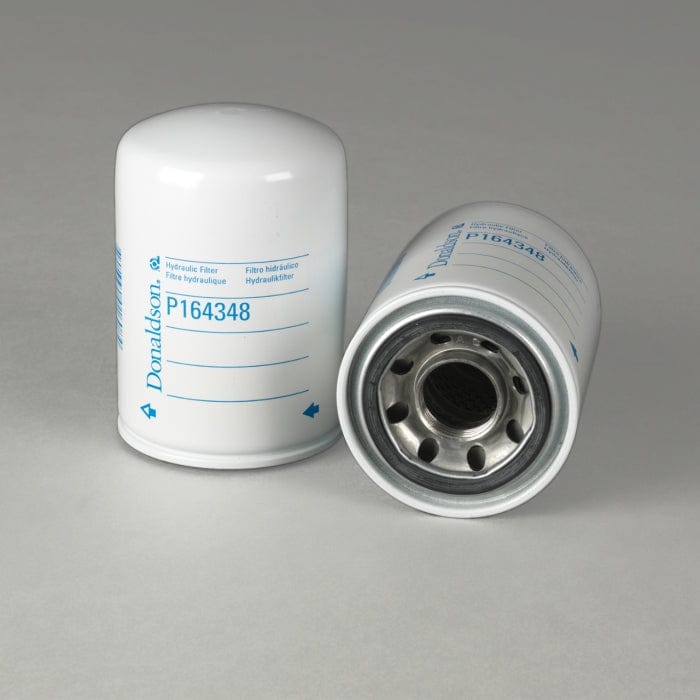

Hydraulic Filter, Spin-On - Donaldson P164348
Hydraulic Filter, Spin-On - Donaldson P164348
Regular price
£18.40
Regular price
Sale price
£18.40
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P164348
Hydraulic Filter, Spin-On| Outer Diameter | 3.70 inch (94 mm) |
| Thread Size | 1 1/4-12 UN |
| Length | 5.35 inch (136 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency Beta 2 | 17 micron |
| Efficiency Beta 1000 | 40 micron |
| Style | Spin-On |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 94 mm (3.70 inch)
- Thread Size: 1 1/4-12 UN
- Length: 136 mm (5.35 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency Beta 2: 17 micron
- Efficiency Beta 1000: 40 micron
- Style: Spin-On
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.105 m (4.20 inch)
- Packaged Width: 0.098 m (3.90 inch)
- Packaged Height: 0.145 m (5.80 inch)
- Packaged Weight: 0.565 kg (1.25 lb)
- Packaged Volume: 0.002 m3 (0.05 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330016084
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF925 | |
| AGCO | 1060005M91 | |
| AGCO | 0000037991 | |
| ALLIS-CHALMERS | 112135 | |
| AMERICAN PARTS | 92611 | |
| AMERICAN PARTS | 2076 | |
| BIG A | 2076 | |
| BIG A | 92611 | |
| BLAW KNOX | 501602704 | |
| BOSCH-REXROTH | 7L95P40 | |
| CASE/CASE IH | N6757 | |
| CATERPILLAR | 3I0606 | |
| CESSNA | 5604 | |
| CESSNA | 5611 | |
| CESSNA | 5614 | |
| CESSNA | 67508000 | |
| CESSNA | 67507000 | |
| CHAMPION ROAD | 13321 | |
| CHAMPION ROAD | 13322 | |
| CHAMPION ROAD | 12321 | |
| CHAMPION ROAD | 12322 | |
| COOPERS | HEM6075 | |
| DELUXE | WD604 | |
| DELUXE | 604 | |
| DOMINION | 12322 | |
| EATON | 0056170505 | |
| EATON | 5604 | |
| EATON | IF3243 | |
| EATON | IF32515 | |
| EATON | IF3245 | |
| EATON | IF3255 | |
| EATON | IF3253 | |
| EATON | 67508 | |
| EATON | 6750700 | |
| EATON | 67508000 | |
| EATON | IF3043 | |
| EATON | IF30415 | |
| EATON | IF30515 | |
| EATON | IF3045 | |
| EATON | IF3055 | |
| EATON | IF3053 | |
| EATON | IF32415 | |
| EATON | F3245 | |
| EATON | IF16415 | |
| EATON | 5614 | |
| EATON | IF1645 | |
| EATON | IF1643 | |
| EATON | F1643 | |
| EATON | F16415 | |
| EATON | F1645 | |
| EATON | F3243 | |
| EATON | F32415 | |
| FENDT | 37991 | |
| FIAT | 70112135 | |
| FORD | 9576P164348 | |
| HAVAM | HD8810 | |
| HINO | 1060005M91 | |
| INGERSOLL RAND | 35325083 | |
| INGERSOLL RAND | 59447326 | |
| INGERSOLL RAND | 35327824 | |
| INGERSOLL RAND | 36707636 | |
| INGERSOLL RAND | 36897353 | |
| MASSEY FERGUSON | 1060005M91 | |
| MASSEY FERGUSON | 1060005M92 | |
| MASSEY FERGUSON | 106000SM92 | |
| MASSEY FERGUSON | 1053870M91 | |
| P.B.R. | BC107610 | |
| P.B.R. | BC1076 | |
| TWIN DISC | 1003015 | |
| VERSATILE | V63304 | |
| VERSATILE | 63304 | |
| VMC | HF164348 | |
| WALGAHN-MOTORENTECHN | 810917 | |
| WALGAHN-MOTORENTECHN | 810975 | |
| WALGAHN-MOTORENTECHN | 810976 | |
| WALGAHN-MOTORENTECHN | 00810917 | |
| WALGAHN-MOTORENTECHN | 00810976 | |
| WALGAHN-MOTORENTECHN | 00810975 | |
| YALE | 67507000 | |
| YALE | 67508000 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| HINO MF230 | - | TRUCK | - | PERKINS AD3.152 | - |
| HINO MF230 | - | TRUCK | - | CONTINENTAL Z145G | - |
| HINO MF235 | - | TRUCK | - | CONTINENTAL Z145G | - |
| HINO MF245 | - | TRUCK | - | CONTINENTAL Z145G | - |
| INGERSOLL RAND 7/31 | - | COMPRESSOR | - | INGERSOLL RAND 3IRL4N | - |
| INGERSOLL RAND P100AWW | - | COMPRESSOR | - | - P100AWW | - |
| INGERSOLL RAND P100AWWU | - | COMPRESSOR | - | - P100AWWU | - |
| INGERSOLL RAND P100BWF | - | COMPRESSOR | - | - P100BWF | - |
| INGERSOLL RAND P100DWD | - | COMPRESSOR | - | - P100DWD | - |
| INGERSOLL RAND P100EWD | - | COMPRESSOR | - | - P100EWD | - |
| INGERSOLL RAND P100FWD | - | COMPRESSOR | - | - P100FWD | - |
| INGERSOLL RAND P100SD | - | COMPRESSOR | - | - P100SD | - |
| INGERSOLL RAND P100W | - | COMPRESSOR | - | - P100W | - |
| INGERSOLL RAND P100WDU | - | COMPRESSOR | - | - P100WDU | - |
| INGERSOLL RAND P100WFU | - | COMPRESSOR | - | - P100WFU | - |
| INGERSOLL RAND P100WW | - | COMPRESSOR | - | - P100WW | - |
| INGERSOLL RAND P100WWU | - | COMPRESSOR | - | - P100WWU | - |
| INGERSOLL RAND P110WIR | - | COMPRESSOR | - | ISUZU 4LC1 | - |
| INGERSOLL RAND P125AWJD | - | COMPRESSOR | - | - P125AWJD | - |
| INGERSOLL RAND P125AWW | - | COMPRESSOR | - | - P125AWW | - |
| INGERSOLL RAND P125BWF | - | COMPRESSOR | - | - P125BWF | - |
| INGERSOLL RAND P125BWJD | - | COMPRESSOR | - | - P125BWJD | - |
| INGERSOLL RAND P125DWD | - | COMPRESSOR | - | - P125DWD | - |
| INGERSOLL RAND P125EWD | - | COMPRESSOR | - | - P125EWD | - |
| INGERSOLL RAND P125FWD | - | COMPRESSOR | - | - P125FWD | - |
| INGERSOLL RAND P125WFU | - | COMPRESSOR | - | - P125WFU | - |
| INGERSOLL RAND P125WJD | - | COMPRESSOR | - | - P125WJD | - |
| INGERSOLL RAND P125WW | - | COMPRESSOR | - | - P125WW | - |
| INGERSOLL RAND P130AWJD | - | COMPRESSOR | - | - P130AWJD | - |
| INGERSOLL RAND P130BWJD | - | COMPRESSOR | - | - P130BWJD | - |
| INGERSOLL RAND P130CWJD | - | COMPRESSOR | - | - P130CWJD | - |
| INGERSOLL RAND P130DWJD | - | COMPRESSOR | - | - P130DWJD | - |
| INGERSOLL RAND P130WD | - | COMPRESSOR | - | - P130WD | - |
| INGERSOLL RAND P130WJD | - | COMPRESSOR | - | JOHN DEERE 3029D | - |
| INGERSOLL RAND P150WW | - | COMPRESSOR | - | - P150WW | - |
| INGERSOLL RAND P160BWJD | - | COMPRESSOR | - | - P160BWJD | - |
| INGERSOLL RAND P160CWJD | - | COMPRESSOR | - | - P160CWJD | - |
| INGERSOLL RAND P160DWJD | - | COMPRESSOR | - | - P160DWJD | - |
| INGERSOLL RAND P160WFU | - | COMPRESSOR | - | - P160WFU | - |
| INGERSOLL RAND P175BWJD | - | COMPRESSOR | - | - P175BWJD | - |
| INGERSOLL RAND P175CWJD | - | COMPRESSOR | - | - P175CWJD | - |
| INGERSOLL RAND P175DWJD | - | COMPRESSOR | - | - P175DWJD | - |
| INGERSOLL RAND P175WFU | - | COMPRESSOR | - | - P175WFU | - |
| INGERSOLL RAND P175WJDU | - | COMPRESSOR | - | JOHN DEERE 3029D | - |
| INGERSOLL RAND P175WW | - | COMPRESSOR | - | - P175WW | - |
| INGERSOLL RAND P175WWU | - | COMPRESSOR | - | - P175WWU | - |
| INGERSOLL RAND P185WIR | - | COMPRESSOR | - | ISUZU 4JG1 | - |
| INGERSOLL RAND P185WIR | - | COMPRESSOR | - | INGERSOLL RAND 4IRJ7N | - |
| INGERSOLL RAND P185WW | - | COMPRESSOR | - | - P185WW | - |
| INGERSOLL RAND P250BWD | - | CONSTRUCTION EQUIPMENT | - | - P250BWD | - |
| INGERSOLL RAND P250WJD | - | COMPRESSOR | - | JOHN DEERE 4045D | - |
| INGERSOLL RAND P260WIR | - | COMPRESSOR | - | ISUZU 4JG1T | - |
| INGERSOLL RAND XP185DWJD | - | COMPRESSOR | - | JOHN DEERE - | - |
| INGERSOLL RAND XP185WIR | - | COMPRESSOR | - | ISUZU 4JG1T | - |
| INGERSOLL RAND XP185WIR | - | COMPRESSOR | - | INGERSOLL RAND 4IR18N | - |
