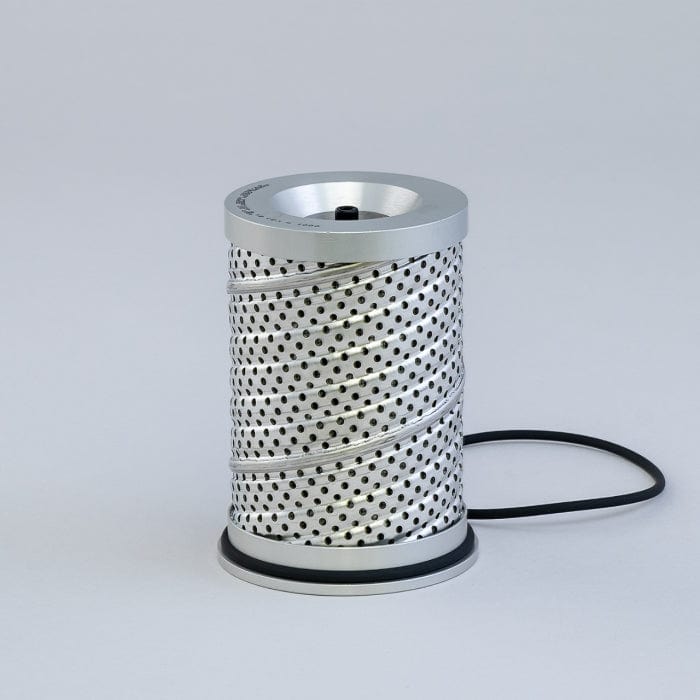

Hydraulic Filter, Cartridge Dt - Donaldson P580127
Hydraulic Filter, Cartridge Dt - Donaldson P580127
Regular price
£115.46
Regular price
Sale price
£115.46
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P580127
Hydraulic Filter, Cartridge Dt| Seal Material | Viton |
| Outer Diameter | 3.42 inch (86.87 mm) |
| Length | 4.74 inch (120.4 mm) |
| Efficiency Beta 1000 | 12 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 25 psi (1.72 bar) |
| Collapse Burst | 149 psi (10.3 bar) |
| Maximum Operating Temperature | 250 °F (121 °C) |
| Media Brand | DT High-Performance |
Share
Collapsible content
Specifications
Attributes
- Seal Material: Viton
- Outer Diameter: 86.87 mm (3.42 inch)
- Length: 120.4 mm (4.74 inch)
- Efficiency Beta 1000: 12 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.72 bar (25 psi)
- Collapse Burst: 10.3 bar (149 psi)
- Maximum Operating Temperature: 121 °C (250 °F)
- Media Brand: DT High-Performance
Packaged Dimensions
- Packaged Length: 0.30 FT
- Packaged Width: 0.29 FT
- Packaged Height: 0.51 FT
- Packaged Weight: 0.456 kg (1.01 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-07
- HTS Code: 8421298090
- UPC Code: 742330231661
