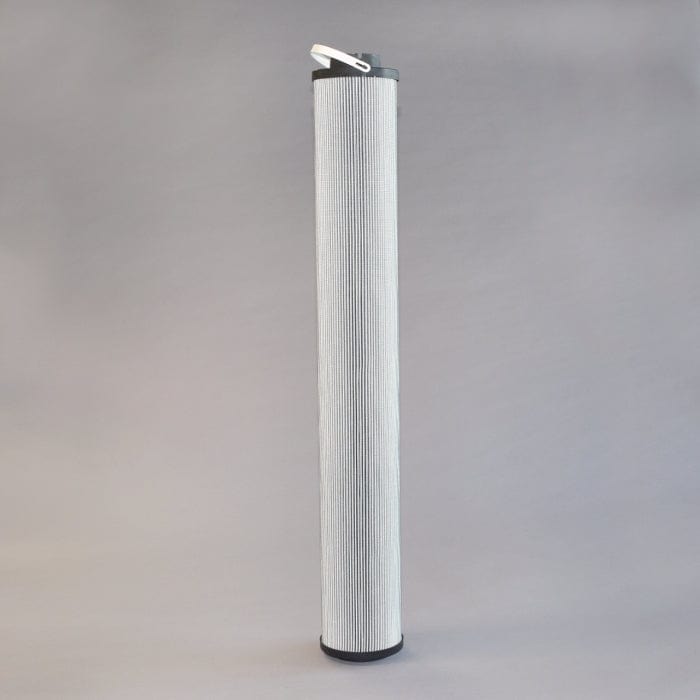

Hydraulic Filter, Cartridge Dt - Donaldson P575147

Attributes

• Outer Diameter: 113.9 mm (4.48 inch)
• Inner Diameter: 68.6 mm (2.70 inch)
• Length: 792.5 mm (31.20 inch)
• Gasket ID: 66 mm (2.60 inch)
• Efficiency Beta 1000: 8 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 3 bar (44 psi)
• Collapse Burst: 20 bar (290 psi)
• Media Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.40 FT
• Packaged Width: 0.40 FT
• Packaged Height: 2.67 FT
• Packaged Weight: 2.470 kg (5.44 lb)
• Packaged Volume: 0.012 m3 (0.43 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 133320
• HTS Code: 8421298090
• UPC Code: 742330982839
