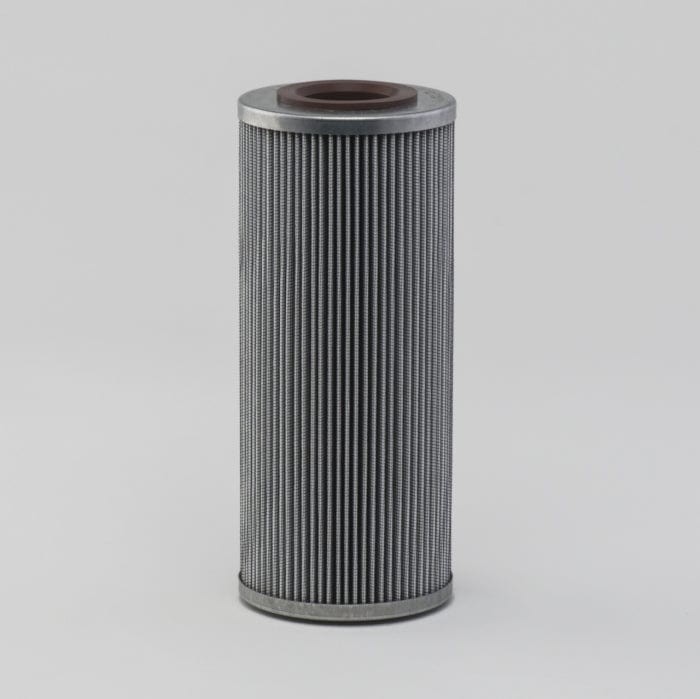

Hydraulic Filter, Cartridge Dt - Donaldson P568816
Hydraulic Filter, Cartridge Dt - Donaldson P568816
Regular price
£61.88
Regular price
Sale price
£61.88
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P568816
Hydraulic Filter, Cartridge Dt| Seal Material | Viton |
| Outer Diameter | 3.85 inch (97.9 mm) |
| Inner Diameter | 1.61 inch (40.8 mm) |
| Length | 9.12 inch (231.6 mm) |
| Efficiency Beta 1000 | 4 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Series | WL16 |
| Brand | DT High-Performance |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Seal Material: Viton
- Outer Diameter: 97.9 mm (3.85 inch)
- Inner Diameter: 40.8 mm (1.61 inch)
- Length: 231.6 mm (9.12 inch)
- Efficiency Beta 1000: 4 micron
- Collapse Burst: 20 bar (290 psi)
- Style: Cartridge
- Series: WL16
- Brand: DT High-Performance
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.105 m (4.20 inch)
- Packaged Width: 0.105 m (4.20 inch)
- Packaged Height: 0.253 m (10.10 inch)
- Packaged Weight: 0.754 kg (1.66 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330191736
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| MCNEILUS | 1108717 |
