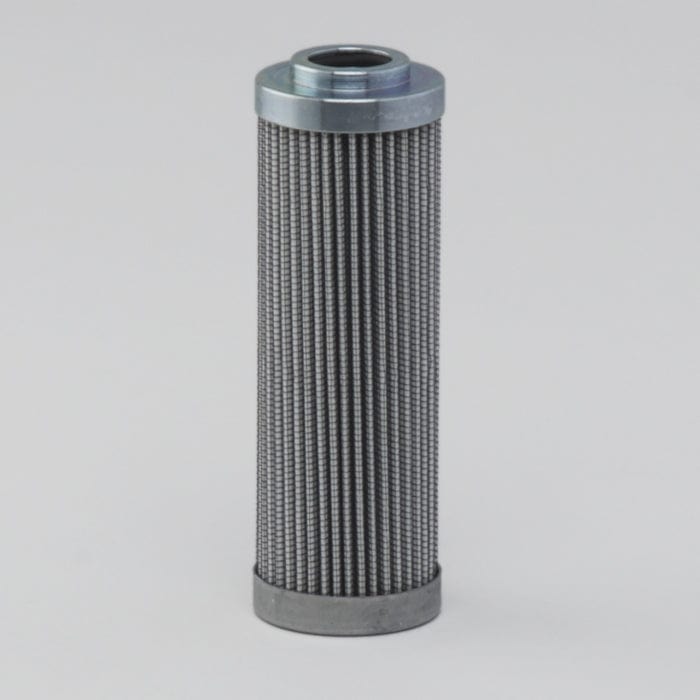

Hydraulic Filter, Cartridge Dt - Donaldson P567067

Attributes

• Seal Material: Viton
• Outer Diameter: 44.2 mm (1.74 inch)
• Inner Diameter: 19.7 mm (0.78 inch)
• Gasket OD: 23.96 mm (0.94 inch)
• Gasket ID: 18.72 mm (0.74 inch)
• Overall Length: 133.83 mm (5.27 inch)
• Efficiency Beta 1000: 12 micron
• Collapse Burst: 10.3 bar (149 psi)
• Style: Cartridge
• Brand: DT High-Performance
• Media Type: Synthetic
• Primary Application: SCHROEDER NZ10

Packaged Dimensions

• Packaged Length: 0.058 m (2.30 inch)
• Packaged Width: 0.058 m (2.30 inch)
• Packaged Height: 0.258 m (10.30 inch)
• Packaged Weight: 0.182 kg (0.40 lb)
• Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-05
• HTS Code: 8421298090
• UPC Code: 742330962824
