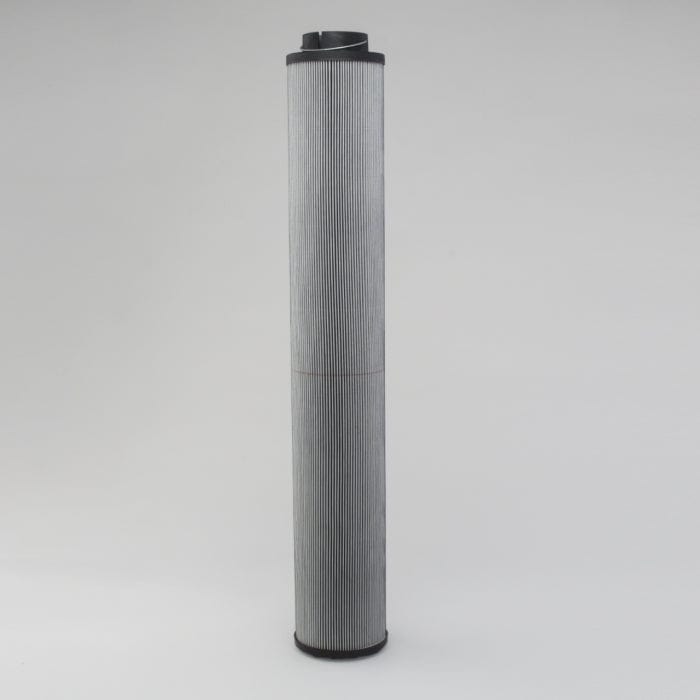

Hydraulic Filter, Cartridge Dt - Donaldson P567002
Hydraulic Filter, Cartridge Dt - Donaldson P567002
Regular price
£331.06
Regular price
Sale price
£331.06
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P567002
Hydraulic Filter, Cartridge Dt| Outer Diameter | 5.72 inch (145.2 mm) |
| Inner Diameter | 3.78 inch (96 mm) |
| Length | 36.18 inch (919 mm) |
| Gasket ID | 3.73 inch (94.8 mm) |
| Efficiency Beta 1000 | 8 micron |
| Media Brand | DT High-Performance |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 145.2 mm (5.72 inch)
- Inner Diameter: 96 mm (3.78 inch)
- Length: 919 mm (36.18 inch)
- Gasket ID: 94.8 mm (3.73 inch)
- Efficiency Beta 1000: 8 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 3 bar (44 psi)
- Collapse Burst: 20 bar (290 psi)
- Media Brand: DT High-Performance
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.175 m (7.00 inch)
- Packaged Width: 0.175 m (7.00 inch)
- Packaged Height: 1.010 m (40.40 inch)
- Packaged Weight: 5.979 kg (13.17 lb)
- Packaged Volume: 0.032 m3 (1.15 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330190524
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BOSCH-REXROTH | 102600H6SLA000P | |
| DENISON | DE2602V8C05 | |
| METSO | 9651182900 | |
| MP FILTRI | MP5054 | |
| PTI | H2600R006EB3V |
