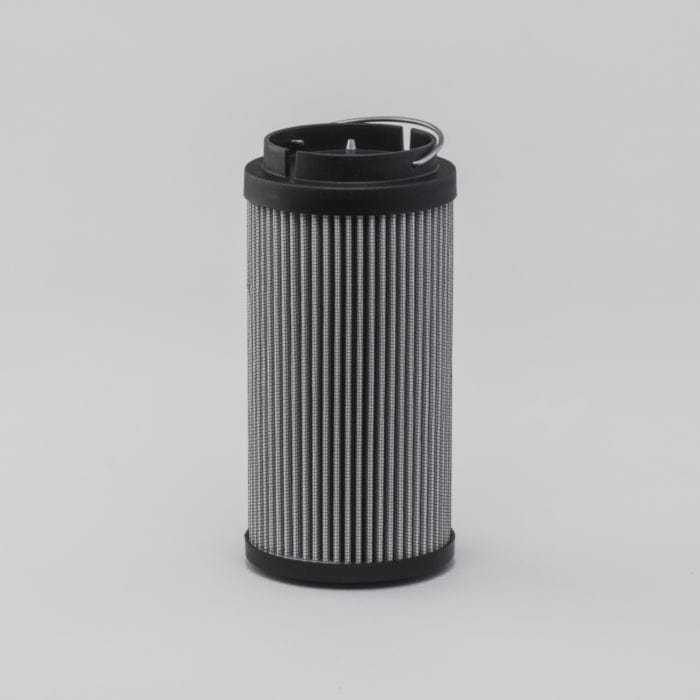

Hydraulic Filter, Cartridge Dt - Donaldson P566982
Hydraulic Filter, Cartridge Dt - Donaldson P566982
Regular price
£115.92
Regular price
Sale price
£115.92
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P566982
Hydraulic Filter, Cartridge Dt| Outer Diameter | 3.72 inch (94.5 mm) |
| Inner Diameter | 1.9 inch (48.3 mm) |
| Length | 7.67 inch (194.7 mm) |
| Gasket ID | 1.86 inch (47.22 mm) |
| Efficiency Beta 1000 | 8 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 50 psi (3.45 bar) |
| Media Brand | DT High-Performance |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 94.5 mm (3.72 inch)
- Inner Diameter: 48.3 mm (1.9 inch)
- Length: 194.7 mm (7.67 inch)
- Gasket ID: 47.22 mm (1.86 inch)
- Efficiency Beta 1000: 8 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 3.45 bar (50 psi)
- Media Brand: DT High-Performance
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.105 m (4.20 inch)
- Packaged Width: 0.105 m (4.20 inch)
- Packaged Height: 0.250 m (10.00 inch)
- Packaged Weight: 0.602 kg (1.33 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330190326
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BEHRINGER | BE330R03A43 | |
| BEHRINGER | BE330R06A43 | |
| BEHRINGER | BE330R06A43V | |
| BOSCH-REXROTH | R928017554 | |
| BOSCH-REXROTH | R928017553 | |
| CATERPILLAR | 1432849 | |
| DENISON | DER332B2C03 | |
| DENISON | DER332B2C05 | |
| DENISON | DER332V2C05 | |
| EPPENSTEINER | 10330LAH3XLA006MSO3000 | |
| EPPENSTEINER | 10330LAH6XL0006MSO3000 | |
| EPPENSTEINER | 30TR330H3LLLA | |
| EPPENSTEINER | 30TR330H6LLLA | |
| MCNEILUS | 1453650 | |
| MP FILTRI | DK270A003ANCP01 | |
| MP FILTRI | DK270A005ANCPXX | |
| MP FILTRI | DK270A003ANCPXX | |
| MP FILTRI | DC330CA03ANPXX | |
| MP FILTRI | DC330CA06ANPXX | |
| MP FILTRI | MP4214 | |
| PTI | H0330R006EB3 | |
| PTI | H0330R006EB3V | |
| PTI | H0330R003EB3 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 320B | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 320BLN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 320BN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | - |
| CATERPILLAR 320BS | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 320C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | - |
