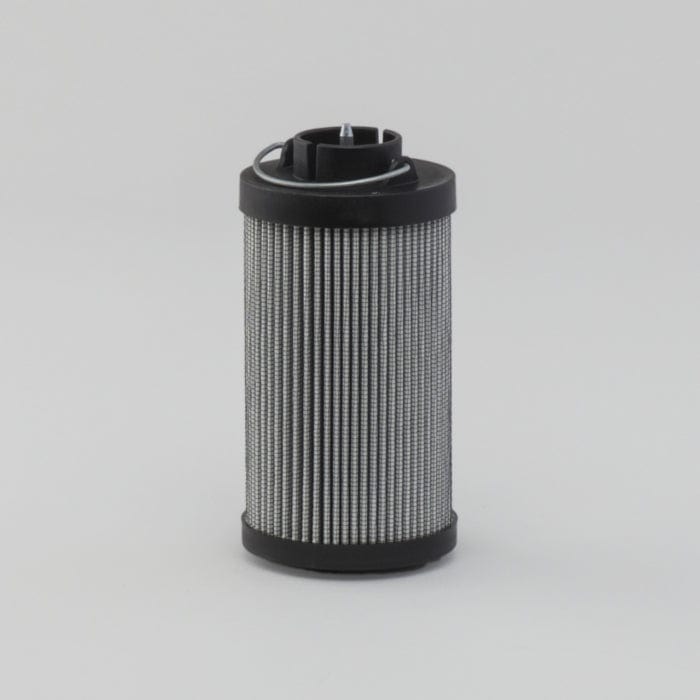

Hydraulic Filter, Cartridge Dt - Donaldson P566969

Attributes

• Outer Diameter: 72.6 mm (2.86 inch)
• Inner Diameter: 34.1 mm (1.34 inch)
• Length: 144 mm (5.67 inch)
• Gasket ID: 32.9 mm (1.30 inch)
• Efficiency Beta 1000: 5 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 3 bar (44 psi)
• Media Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.227 m (9.06 inch)
• Packaged Width: 0.099 m (3.94 inch)
• Packaged Height: 0.099 m (3.94 inch)
• Packaged Weight: 0.318 kg (0.70 lb)
• Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330190234
