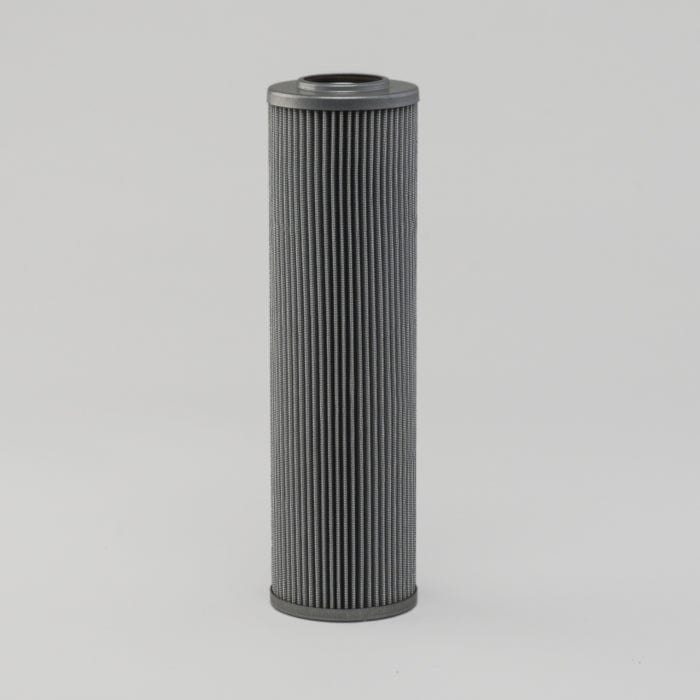

Hydraulic Filter, Cartridge Dt - Donaldson P566682

Attributes

• Seal Material: Viton
• Outer Diameter: 90.4 mm (3.56 inch)
• Inner Diameter: 48.2 mm (1.90 inch)
• Overall Length: 329.5 mm (12.97 inch)
• Efficiency Beta 1000: 5 micron
• Bypass Valve: No
• Collapse Burst: 31 bar (450 psi)
• Style: Cartridge
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.103 m (4.10 inch)
• Packaged Width: 0.103 m (4.10 inch)
• Packaged Height: 0.335 m (13.40 inch)
• Packaged Weight: 0.867 kg (1.91 lb)
• Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330179444
