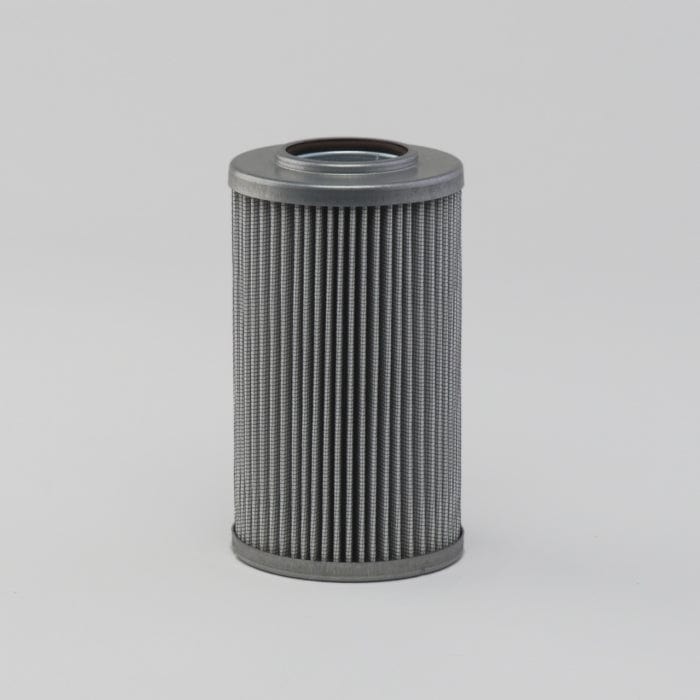

Hydraulic Filter, Cartridge Dt - Donaldson P566681

Attributes

• Seal Material: Viton
• Outer Diameter: 92.1 mm (3.63 inch)
• Inner Diameter: 48.1 mm (1.89 inch)
• Overall Length: 163.7 mm (6.44 inch)
• Efficiency Beta 1000: 25 micron
• Collapse Burst: 10.3 bar (149 psi)
• Style: Cartridge
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.246 m (9.84 inch)
• Packaged Width: 0.108 m (4.33 inch)
• Packaged Height: 0.108 m (4.33 inch)
• Packaged Weight: 0.504 kg (1.11 lb)
• Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330179437
