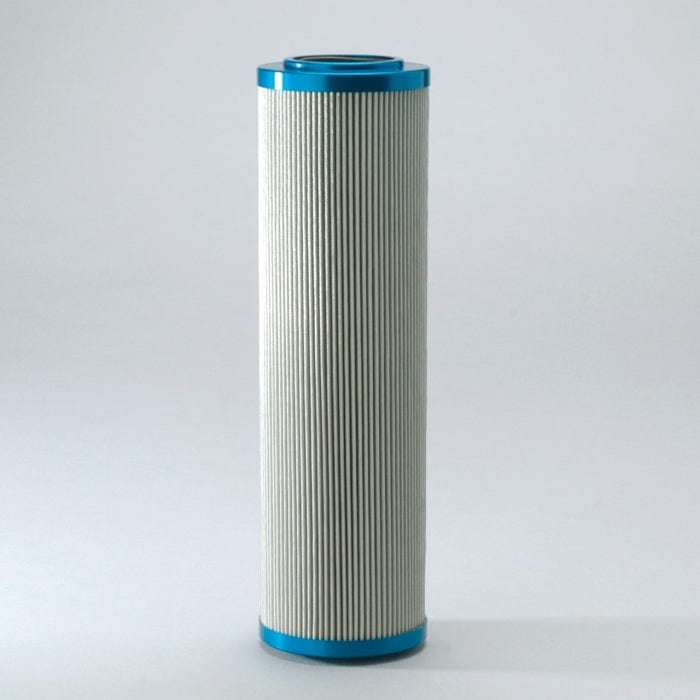

Hydraulic Filter, Cartridge Dt - Donaldson P566643

Attributes

• Seal Material: Viton
• Outer Diameter: 94.9 mm (3.74 inch)
• Inner Diameter: 55 mm (2.17 inch)
• Length: 650.5 mm (25.61 inch)
• Efficiency Beta 1000: 12 micron
• Collapse Burst: 207 bar (3002 psi)
• Style: Cartridge
• Series: HPK05
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.118 m (4.70 inch)
• Packaged Width: 0.113 m (4.50 inch)
• Packaged Height: 0.668 m (26.70 inch)
• Packaged Weight: 3.877 kg (8.54 lb)
• Packaged Volume: 0.009 m3 (0.33 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330179055
