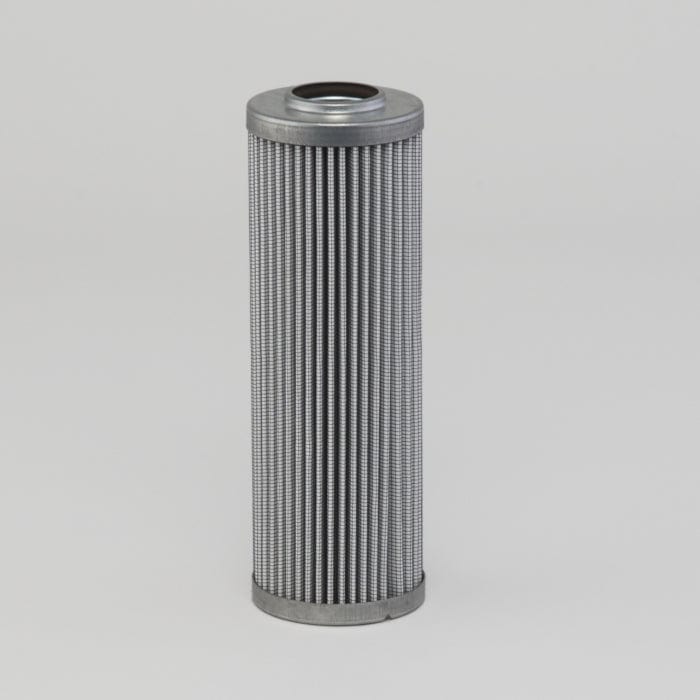

Hydraulic Filter, Cartridge Dt - Donaldson P566631

Attributes

• Seal Material: Viton
• Outer Diameter: 69.9 mm (2.75 inch)
• Inner Diameter: 33.96 mm (1.34 inch)
• Gasket OD: 41 mm (1.61 inch)
• Gasket ID: 33 mm (1.3 inch)
• Overall Length: 202.95 mm (7.99 inch)
• Efficiency Beta 1000: 5 micron
• Collapse Burst: 10.3 bar (149 psi)
• Style: Cartridge
• Brand: DT High-Performance

Packaged Dimensions

• Packaged Length: 0.090 m (3.60 inch)
• Packaged Width: 0.090 m (3.60 inch)
• Packaged Height: 0.255 m (10.20 inch)
• Packaged Weight: 0.418 kg (0.92 lb)
• Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330178935
