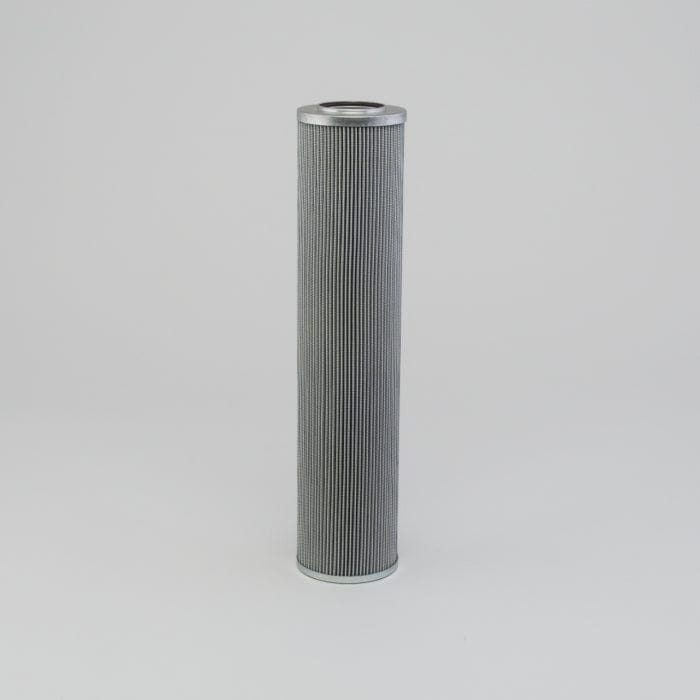

Hydraulic Filter, Cartridge Dt - Donaldson P566502
Hydraulic Filter, Cartridge Dt - Donaldson P566502
Regular price
Ā£136.68
Regular price
Sale price
Ā£136.68
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P566502
Hydraulic Filter, Cartridge Dt| Seal Material | Viton |
| Outer Diameter | 3.79 inch (96.2 mm) |
| Inner Diameter | 2.11 inch (53.7 mm) |
| Overall Length | 16.85 inch (428 mm) |
| Efficiency Beta 1000 | 12 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Brand | DT High-Performance |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Seal Material: Viton
- Outer Diameter: 96.2 mm (3.79 inch)
- Inner Diameter: 53.7 mm (2.11 inch)
- Overall Length: 428 mm (16.85 inch)
- Efficiency Beta 1000: 12 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Brand: DT High-Performance
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.108 m (4.30 inch)
- Packaged Width: 0.108 m (4.30 inch)
- Packaged Height: 0.488 m (19.50 inch)
- Packaged Weight: 1.298 kg (2.86 lb)
- Packaged Volume: 0.006 m3 (0.21 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330178003
