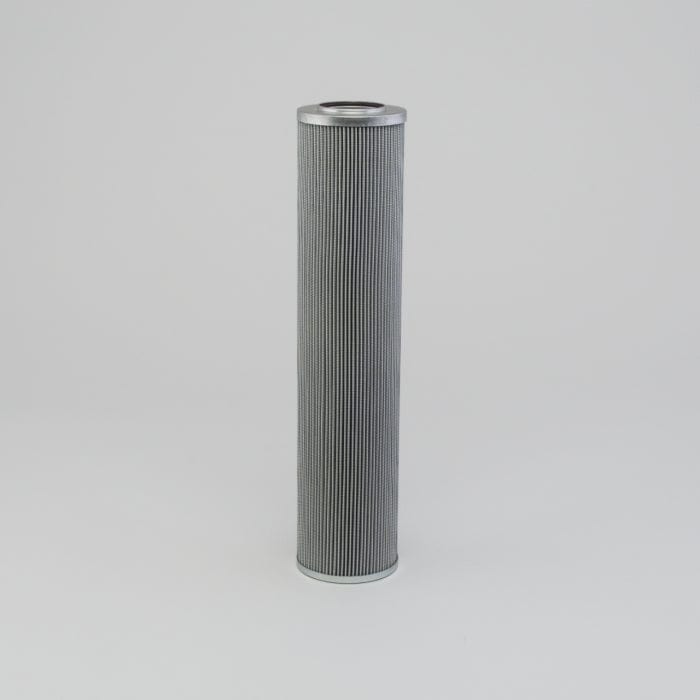

Hydraulic Filter, Cartridge Dt - Donaldson P566499

Attributes

• Seal Material: Viton
• Outer Diameter: 96.2 mm (3.79 inch)
• Inner Diameter: 53.7 mm (2.11 inch)
• Overall Length: 428 mm (16.85 inch)
• Efficiency Beta 1000: 4 micron
• Collapse Burst: 10.3 bar (149 psi)
• Style: Cartridge
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.108 m (4.30 inch)
• Packaged Width: 0.108 m (4.30 inch)
• Packaged Height: 0.485 m (19.40 inch)
• Packaged Weight: 1.262 kg (2.78 lb)
• Packaged Volume: 0.006 m3 (0.21 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330178027
