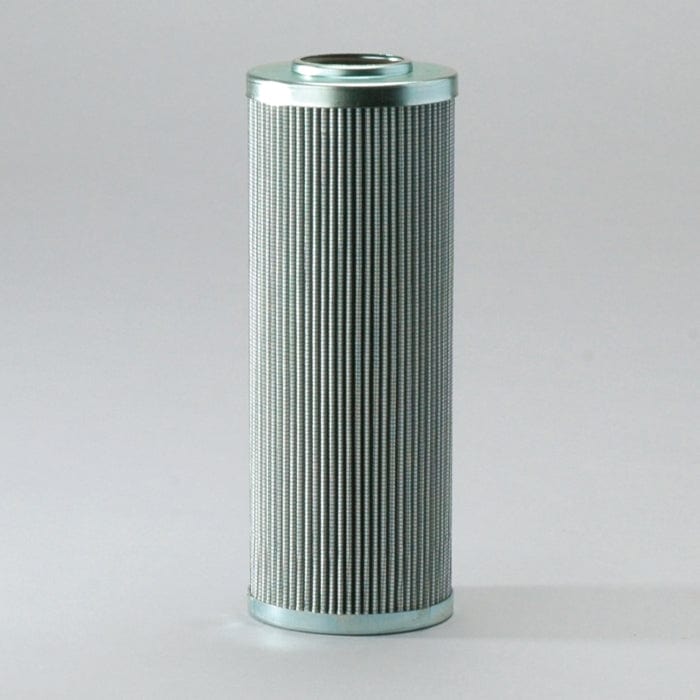

Hydraulic Filter, Cartridge Dt - Donaldson P566470

Attributes

• Seal Material: Nitrile
• Outer Diameter: 78.7 mm (3.10 inch)
• Inner Diameter: 37.8 mm (1.49 inch)
• Overall Length: 427.7 mm (16.84 inch)
• Efficiency Beta 1000: 5 micron
• Collapse Burst: 10.3 bar (149 psi)
• Style: Cartridge
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.433 m (17.32 inch)
• Packaged Width: 0.099 m (3.94 inch)
• Packaged Height: 0.099 m (3.94 inch)
• Packaged Weight: 0.999 kg (2.20 lb)
• Packaged Volume: 0.004 m3 (0.16 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330177372
