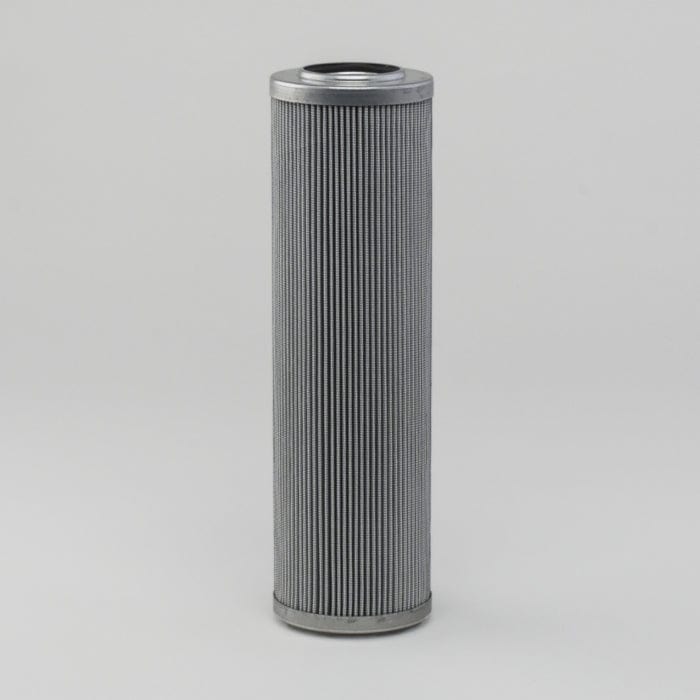

Hydraulic Filter, Cartridge Dt - Donaldson P566446

Attributes

• Seal Material: Viton
• Outer Diameter: 96.2 mm (3.79 inch)
• Inner Diameter: 55.2 mm (2.17 inch)
• Overall Length: 331.5 mm (13.05 inch)
• Efficiency Beta 1000: 8 micron
• Collapse Burst: 10.3 bar (149 psi)
• Style: Cartridge
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.345 m (13.78 inch)
• Packaged Width: 0.108 m (4.33 inch)
• Packaged Height: 0.108 m (4.33 inch)
• Packaged Weight: 0.967 kg (2.13 lb)
• Packaged Volume: 0.004 m3 (0.15 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-08
• HTS Code: 8421298090
• UPC Code: 742330178638
