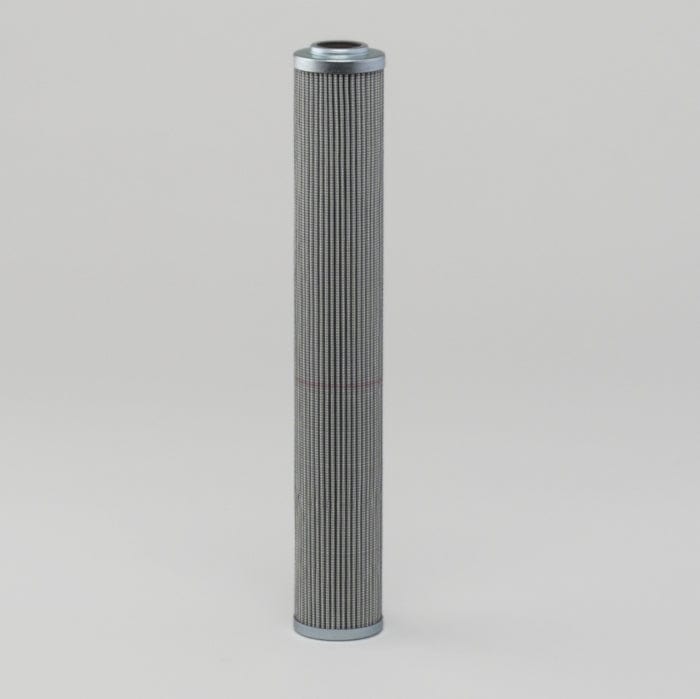

Hydraulic Filter, Cartridge Dt - Donaldson P566403
Hydraulic Filter, Cartridge Dt - Donaldson P566403
Regular price
Ā£81.40
Regular price
Sale price
Ā£81.40
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P566403
Hydraulic Filter, Cartridge Dt| Seal Material | Viton |
| Outer Diameter | 1.97 inch (50 mm) |
| Inner Diameter | 0.95 inch (24.1 mm) |
| Overall Length | 12.93 inch (328.5 mm) |
| Efficiency Beta 1000 | 8 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Brand | DT High-Performance |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Seal Material: Viton
- Outer Diameter: 50 mm (1.97 inch)
- Inner Diameter: 24.1 mm (0.95 inch)
- Overall Length: 328.5 mm (12.93 inch)
- Efficiency Beta 1000: 8 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Brand: DT High-Performance
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.335 m (13.39 inch)
- Packaged Width: 0.069 m (2.76 inch)
- Packaged Height: 0.059 m (2.36 inch)
- Packaged Weight: 0.386 kg (0.85 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330176924
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| VICKERS | V6011B4C05 |
