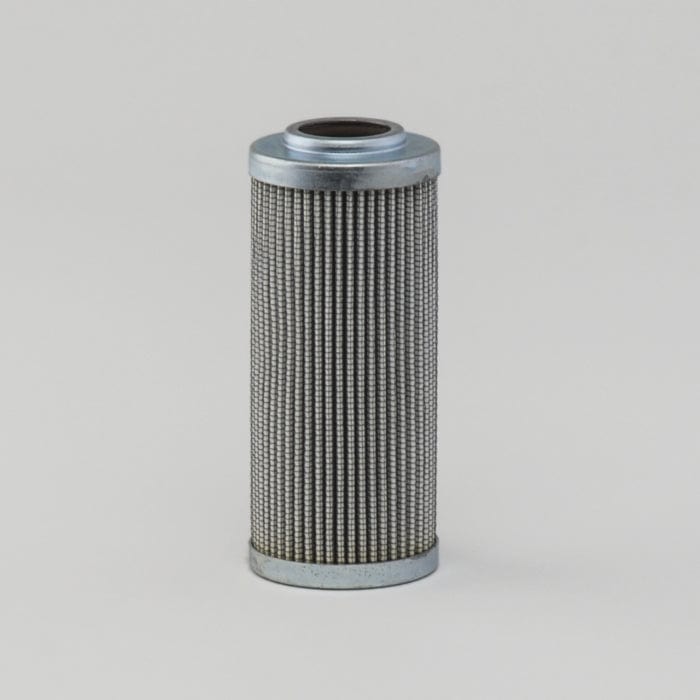

Hydraulic Filter, Cartridge Dt - Donaldson P566395
Hydraulic Filter, Cartridge Dt - Donaldson P566395
Regular price
Ā£57.36
Regular price
Sale price
Ā£57.36
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P566395
Hydraulic Filter, Cartridge Dt| Seal Material | Viton |
| Outer Diameter | 1.97 inch (50 mm) |
| Inner Diameter | 0.95 inch (24.1 mm) |
| Overall Length | 4.62 inch (117.3 mm) |
| Efficiency Beta 1000 | 25 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Brand | DT High-Performance |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Seal Material: Viton
- Outer Diameter: 50 mm (1.97 inch)
- Inner Diameter: 24.1 mm (0.95 inch)
- Overall Length: 117.3 mm (4.62 inch)
- Efficiency Beta 1000: 25 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Brand: DT High-Performance
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.069 m (2.76 inch)
- Packaged Width: 0.059 m (2.36 inch)
- Packaged Height: 0.128 m (5.12 inch)
- Packaged Weight: 0.163 kg (0.36 lb)
- Packaged Volume: 0.001 m3 (0.02 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330176849
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 47128161 | |
| DENNIS | 630820 | |
| JOHN DEERE | ER262825 | |
| JOHN DEERE | ER5000 | |
| LHA | LHE421BTA25SB | |
| OMT | CHP423F25XN |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| JOHN DEERE 5080G | - | TRACTOR | 5G SERIES | JOHN DEERE 4045H | - |
| JOHN DEERE 5080GF | - | TRACTOR | 5G SERIES | JOHN DEERE 4.5L | - |
| JOHN DEERE 5080GV | - | TRACTOR | 5G SERIES | JOHN DEERE 4.5L | - |
| JOHN DEERE 5090G | - | TRACTOR | - | JOHN DEERE 4.5L | - |
| JOHN DEERE 5090GF | - | TRACTOR | - | JOHN DEERE 4.5L | - |
| JOHN DEERE 5090GH | - | TRACTOR | - | JOHN DEERE 4.5L | - |
| JOHN DEERE 5090GV | - | TRACTOR | - | JOHN DEERE 4.5L | - |
| JOHN DEERE 5100GF | - | TRACTOR | - | JOHN DEERE 4.5L | - |
| JOHN DEERE 5100GV | - | TRACTOR | - | JOHN DEERE 4.5L | - |
| JOHN DEERE 5215 | - | TRACTOR | 5000 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 5310N | - | TRACTOR | 5000 SERIES | - 5310N | - |
| MASSEY FERGUSON MF3615 | - | TRACTOR | MF 3600 SERIES | SISU 33.380DT | - |
| MASSEY FERGUSON MF3625 | - | TRACTOR | MF 3600 SERIES | SISU 33.379DT | - |
| MASSEY FERGUSON MF3625F | - | TRACTOR | MF 3600 SERIES | SISU 33.379DT | - |
| MASSEY FERGUSON MF3625GE | - | TRACTOR | MF 3600 SERIES | SISU 33.379DT | - |
| MASSEY FERGUSON MF3625S | - | TRACTOR | MF 3600 SERIES | SISU 33.379DT | - |
| MASSEY FERGUSON MF3625V | - | TRACTOR | MF 3600 SERIES | SISU 33.379DT | - |
| MASSEY FERGUSON MF3635 | - | TRACTOR | MF 3600 SERIES | SISU 33.378DT | - |
| MASSEY FERGUSON MF3635F | - | TRACTOR | MF 3600 SERIES | SISU 33.378DT | - |
| MASSEY FERGUSON MF3635GE | - | TRACTOR | MF 3600 SERIES | SISU 33.378DT | - |
| MASSEY FERGUSON MF3635S | - | TRACTOR | MF 3600 SERIES | SISU 33.378DT | - |
| MASSEY FERGUSON MF3635V | - | TRACTOR | MF 3600 SERIES | SISU 33.378DT | - |
| MASSEY FERGUSON MF3645 | - | TRACTOR | MF 3600 SERIES | SISU 33 DTA | - |
| MASSEY FERGUSON MF3645F | - | TRACTOR | MF 3600 SERIES | SISU 33 DTA | - |
| MASSEY FERGUSON MF3645GE | - | TRACTOR | MF 3600 SERIES | SISU 33 DTA | - |
| MASSEY FERGUSON MF3645S | - | TRACTOR | MF 3600 SERIES | SISU 33 DTA | - |
| MASSEY FERGUSON MF3655 | - | TRACTOR | MF 3600 SERIES | SISU 33 DTA | - |
| MASSEY FERGUSON MF3655F | - | TRACTOR | MF 3600 SERIES | SISU 33 DTA | - |
| MASSEY FERGUSON MF3655GE | - | TRACTOR | MF 3600 SERIES | SISU 33 DTA | - |
| MASSEY FERGUSON MF3655S | - | TRACTOR | MF 3600 SERIES | SISU 33 DTA | - |
