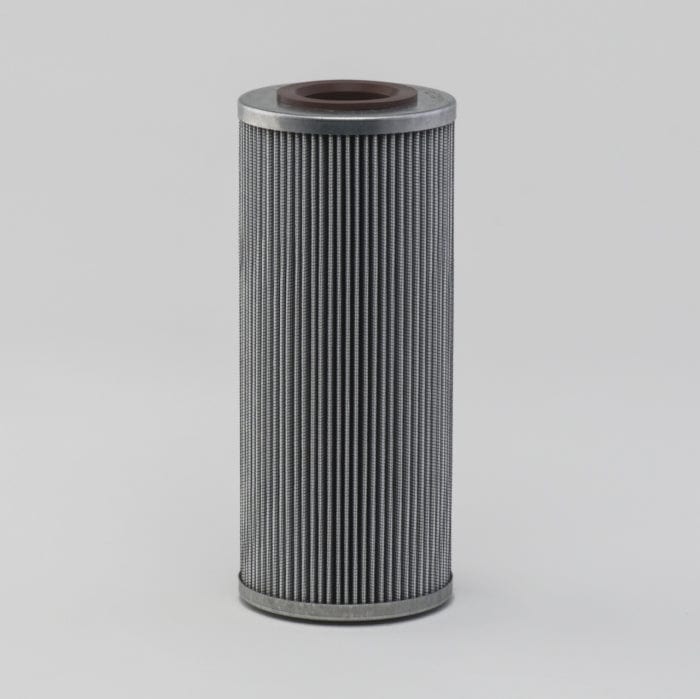

Hydraulic Filter, Cartridge Dt - Donaldson P566272

Attributes

• Seal Material: Viton
• Outer Diameter: 97.9 mm (3.85 inch)
• Inner Diameter: 40.8 mm (1.61 inch)
• Length: 228.6 mm (9 inch)
• Overall Length: 235.7 mm (9.28 inch)
• Efficiency Beta 1000: 12 micron
• Collapse Burst: 20 bar (290 psi)
• Style: Cartridge
• Series: WL15
• WL16:
• W451:
• Brand: DT High-Performance
• Media Type: Synthetic
• Primary Application: SCHROEDER KZ10

Packaged Dimensions

• Packaged Length: 0.105 m (4.20 inch)
• Packaged Width: 0.105 m (4.20 inch)
• Packaged Height: 0.250 m (10.00 inch)
• Packaged Weight: 0.776 kg (1.71 lb)
• Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330175200
