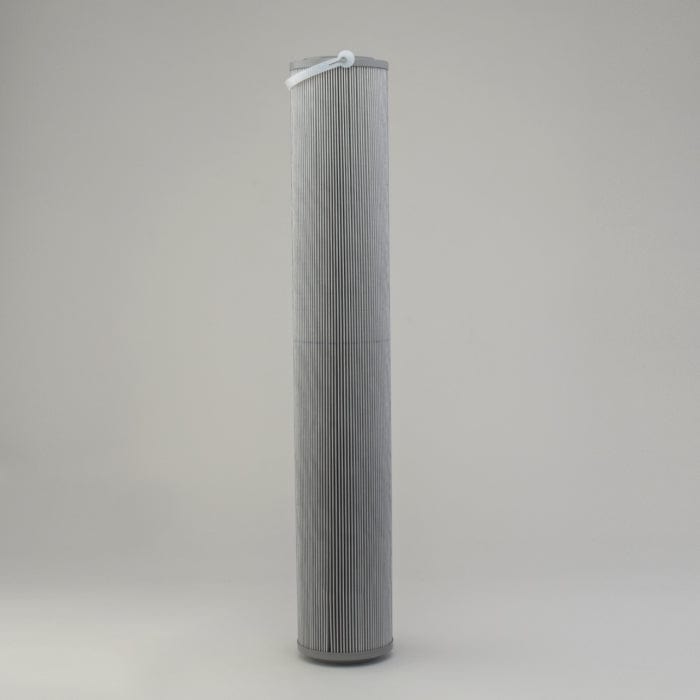

Hydraulic Filter, Cartridge Dt - Donaldson P566266
Hydraulic Filter, Cartridge Dt - Donaldson P566266
Regular price
Ā£360.98
Regular price
Sale price
Ā£360.98
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P566266
Hydraulic Filter, Cartridge Dt| Seal Material | Viton |
| Outer Diameter | 6 inch (152.4 mm) |
| Inner Diameter | 3.88 inch (98.5 mm) |
| Overall Length | 36.37 inch (923.9 mm) |
| Efficiency Beta 1000 | 5 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Brand | DT High-Performance |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Seal Material: Viton
- Outer Diameter: 152.4 mm (6 inch)
- Inner Diameter: 98.5 mm (3.88 inch)
- Overall Length: 923.9 mm (36.37 inch)
- Efficiency Beta 1000: 5 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Brand: DT High-Performance
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.178 m (7.10 inch)
- Packaged Width: 0.178 m (7.10 inch)
- Packaged Height: 1.015 m (40.60 inch)
- Packaged Weight: 4.463 kg (9.83 lb)
- Packaged Volume: 0.033 m3 (1.18 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330175149
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BEHRINGER | BE83143903AV | |
| BEHRINGER | BE83143903A | |
| DENISON | DE2683B8E03 | |
| DENISON | DE2683V8E03 | |
| GRAINGER | 52YT53 | |
| HILCO | 386014029C | |
| HILCO | 386014028C | |
| MP FILTRI | MP5264 | |
| MP FILTRI | MP5263 | |
| PTI | PC83250GFV | |
| SOPHTECH | STF100065B | |
| SWIFT | SF8314393UM | |
| SWIFT | SF8314393UMV |
