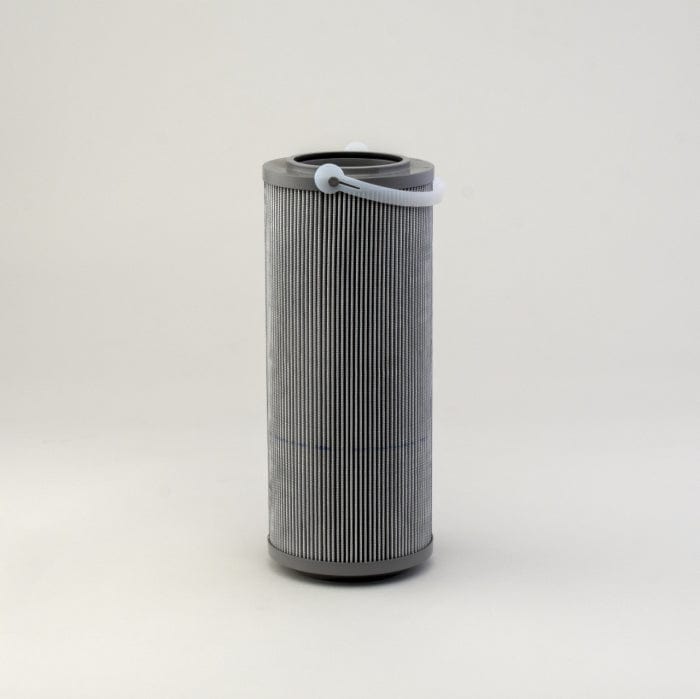

Hydraulic Filter, Cartridge Dt - Donaldson P566260
Hydraulic Filter, Cartridge Dt - Donaldson P566260
Regular price
Ā£273.20
Regular price
Sale price
Ā£273.20
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P566260
Hydraulic Filter, Cartridge Dt| Seal Material | Viton |
| Outer Diameter | 6 inch (152.4 mm) |
| Inner Diameter | 3.77 inch (95.8 mm) |
| Overall Length | 14.48 inch (367.8 mm) |
| Efficiency Beta 1000 | 4 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Brand | DT High-Performance |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Seal Material: Viton
- Outer Diameter: 152.4 mm (6 inch)
- Inner Diameter: 95.8 mm (3.77 inch)
- Overall Length: 367.8 mm (14.48 inch)
- Efficiency Beta 1000: 4 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Brand: DT High-Performance
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.165 m (6.60 inch)
- Packaged Width: 0.165 m (6.60 inch)
- Packaged Height: 0.495 m (19.80 inch)
- Packaged Weight: 1.435 kg (3.16 lb)
- Packaged Volume: 0.014 m3 (0.50 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330175170
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| HILCO | 386016022C | |
| MP FILTRI | MP5242 |
