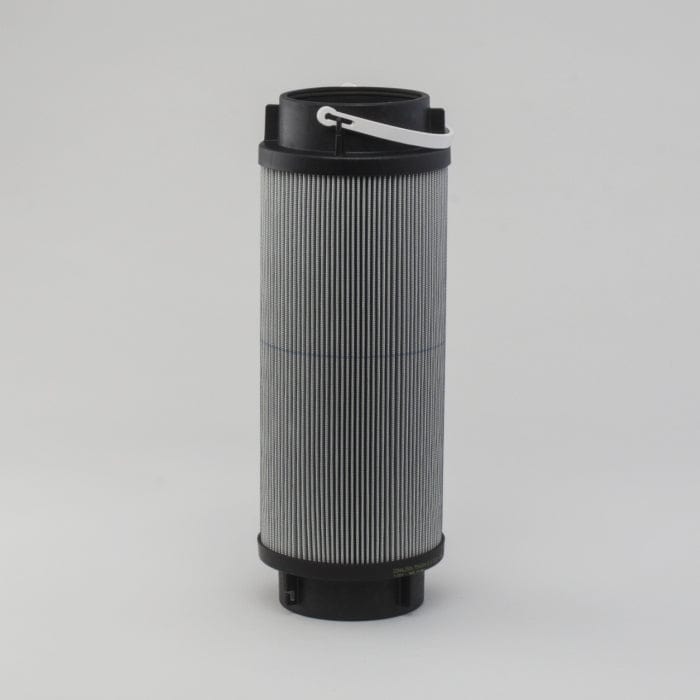

Hydraulic Filter, Cartridge Dt - Donaldson P566249

Attributes

• Seal Material: Viton
• Outer Diameter: 150.8 mm (5.94 inch)
• Inner Diameter: 104.4 mm (4.11 inch)
• Overall Length: 408.7 mm (16.09 inch)
• Efficiency Beta 1000: 4 micron
• Collapse Burst: 10.3 bar (149 psi)
• Style: Cartridge
• Series: W041
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.163 m (6.50 inch)
• Packaged Width: 0.163 m (6.50 inch)
• Packaged Height: 0.500 m (20.00 inch)
• Packaged Weight: 2.320 kg (5.11 lb)
• Packaged Volume: 0.014 m3 (0.49 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330175309
