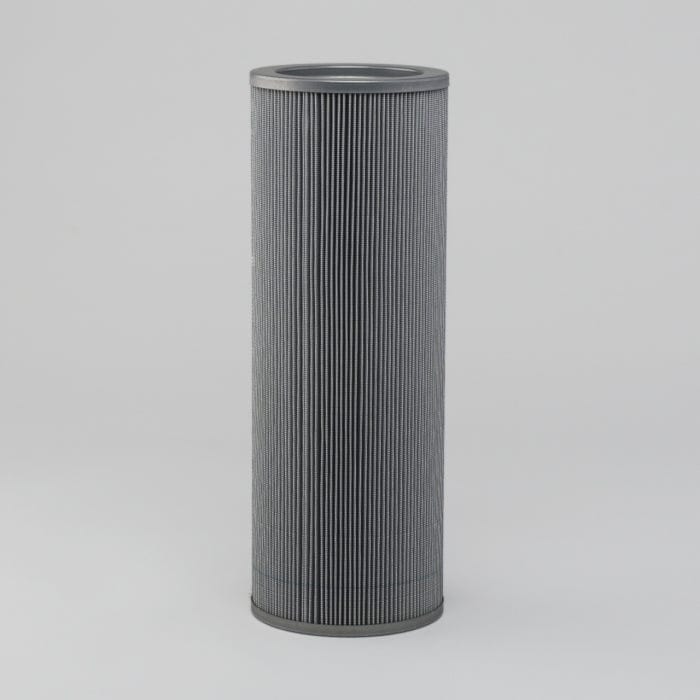

Hydraulic Filter, Cartridge Dt - Donaldson P566242

Attributes

• Seal Material: Viton
• Outer Diameter: 151.4 mm (5.96 inch)
• Inner Diameter: 103.9 mm (4.09 inch)
• Length: 424.8 mm (16.72 inch)
• Efficiency Beta 1000: 12 micron
• Collapse Burst: 10.3 bar (149 psi)
• Style: Cartridge
• Series: W041
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.165 m (6.60 inch)
• Packaged Width: 0.165 m (6.60 inch)
• Packaged Height: 0.495 m (19.80 inch)
• Packaged Weight: 2.638 kg (5.81 lb)
• Packaged Volume: 0.014 m3 (0.50 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330175347
