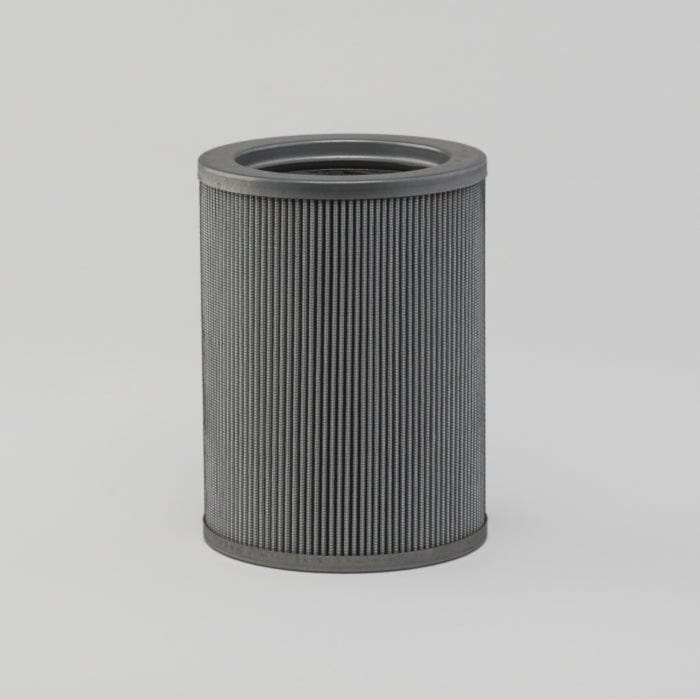

Hydraulic Filter, Cartridge Dt - Donaldson P566236

Attributes

• Seal Material: Viton
• Outer Diameter: 151.4 mm (5.96 inch)
• Inner Diameter: 103.9 mm (4.09 inch)
• Length: 205.5 mm (8.09 inch)
• Efficiency Beta 1000: 8 micron
• Collapse Burst: 10.3 bar (149 psi)
• Style: Cartridge
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.54 FT
• Packaged Width: 0.54 FT
• Packaged Height: 0.82 FT
• Packaged Weight: 1.199 kg (2.64 lb)
• Packaged Volume: 0.007 m3 (0.24 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330175095
