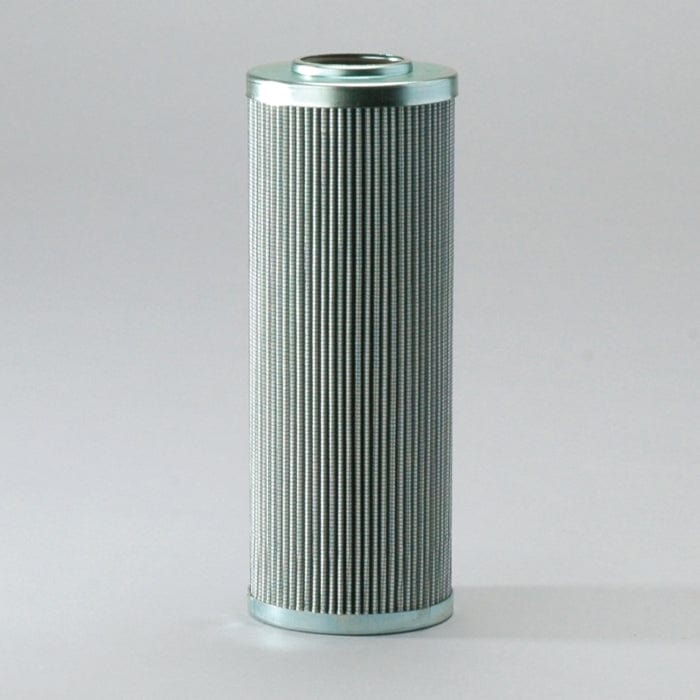

Hydraulic Filter, Cartridge Dt - Donaldson P566225
Hydraulic Filter, Cartridge Dt - Donaldson P566225
Regular price
Ā£115.86
Regular price
Sale price
Ā£115.86
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P566225
Hydraulic Filter, Cartridge Dt| Seal Material | Viton |
| Outer Diameter | 3.1 inch (78.7 mm) |
| Inner Diameter | 1.7 inch (43.2 mm) |
| Length | 8.37 inch (212.7 mm) |
| Efficiency Beta 1000 | 5 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Brand | DT High-Performance |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Seal Material: Viton
- Outer Diameter: 78.7 mm (3.1 inch)
- Inner Diameter: 43.2 mm (1.7 inch)
- Length: 212.7 mm (8.37 inch)
- Efficiency Beta 1000: 5 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Brand: DT High-Performance
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.227 m (9.06 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.099 m (3.94 inch)
- Packaged Weight: 0.508 kg (1.12 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330174852
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BEHRINGER | BE9650803A | |
| DENISON | DE2051B2C03 | |
| EPPENSTEINER | 169650H3LL212SP |
