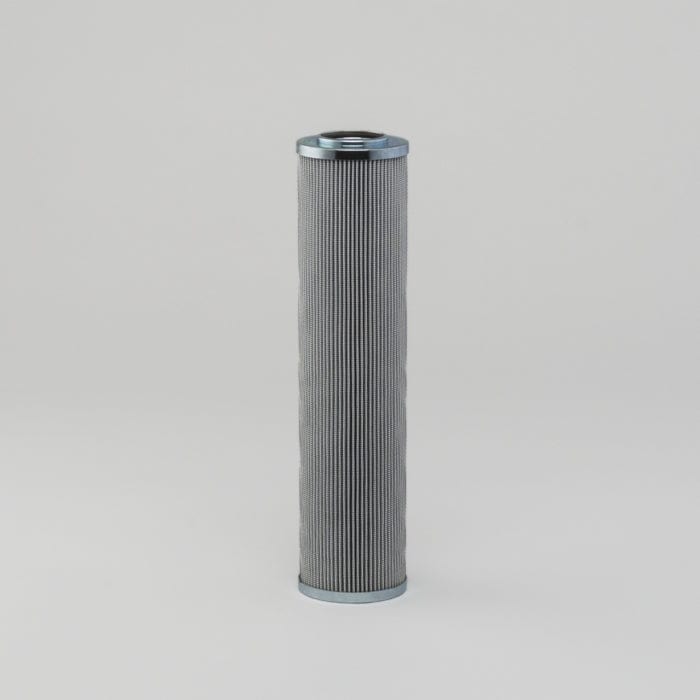

Hydraulic Filter, Cartridge Dt - Donaldson P566217

Attributes

• Seal Material: Viton
• Outer Diameter: 78.84 mm (3.1 inch)
• Inner Diameter: 43.8 mm (1.72 inch)
• Gasket ID: 41.2 mm (1.62 inch)
• Overall Length: 327.8 mm (12.91 inch)
• Efficiency Beta 1000: 12 micron
• Collapse Burst: 20 bar (290 psi)
• Style: Cartridge
• Series: W061
• FPK04:
• HPK04:
• W620:
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.088 m (3.50 inch)
• Packaged Width: 0.088 m (3.50 inch)
• Packaged Height: 0.368 m (14.70 inch)
• Packaged Weight: 0.745 kg (1.64 lb)
• Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

• Country of Origin: Canada
• NMFC Code: 069100-09
• HTS Code: 8421298090
• UPC Code: 742330174951
