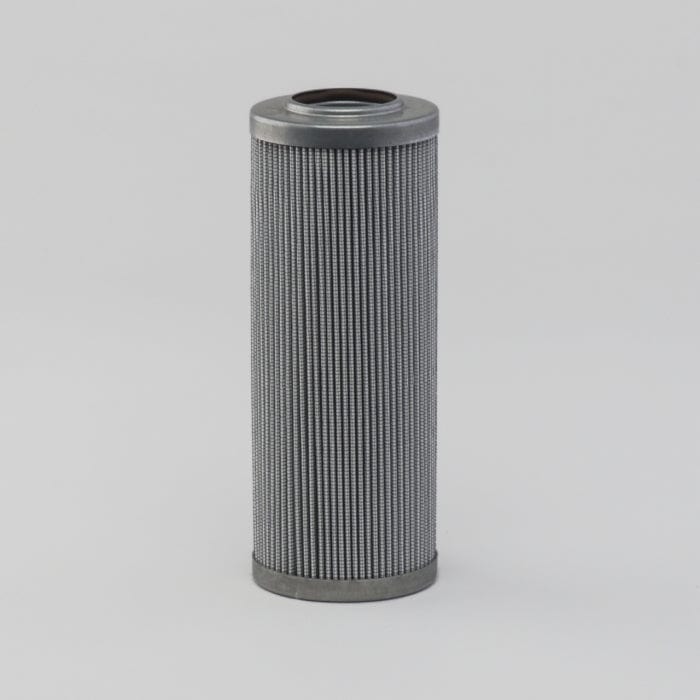

Hydraulic Filter, Cartridge Dt - Donaldson P566212
Hydraulic Filter, Cartridge Dt - Donaldson P566212
Regular price
Ā£43.64
Regular price
Sale price
Ā£43.64
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P566212
Hydraulic Filter, Cartridge Dt| Seal Material | Viton |
| Outer Diameter | 3.07 inch (78 mm) |
| Inner Diameter | 1.71 inch (43.5 mm) |
| Gasket OD | 1.88 inch (47.76 mm) |
| Gasket ID | 1.67 inch (42.52 mm) |
| Overall Length | 8.22 inch (208.8 mm) |
| Efficiency Beta 1000 | 12 micron |
| Collapse Burst | 290 psi (20 bar) |
| Style | Cartridge |
| Series | W061, W350, HPK03, FPK04, HPK04, W620 |
| Brand | DT High-Performance |
| Media Type | Synthetic |
| Primary Application | PALL HC9600FKS8H |
Share
Collapsible content
Specifications
Attributes
- Seal Material: Viton
- Outer Diameter: 78 mm (3.07 inch)
- Inner Diameter: 43.5 mm (1.71 inch)
- Gasket OD: 47.76 mm (1.88 inch)
- Gasket ID: 42.52 mm (1.67 inch)
- Overall Length: 208.8 mm (8.22 inch)
- Efficiency Beta 1000: 12 micron
- Collapse Burst: 20 bar (290 psi)
- Style: Cartridge
- Series: W061
- W350:
- HPK03:
- FPK04:
- HPK04:
- W620:
- Brand: DT High-Performance
- Media Type: Synthetic
- Primary Application: PALL HC9600FKS8H
Packaged Dimensions
- Packaged Length: 0.090 m (3.60 inch)
- Packaged Width: 0.090 m (3.60 inch)
- Packaged Height: 0.255 m (10.20 inch)
- Packaged Weight: 0.527 kg (1.16 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330175040
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3846 | |
| A P PARTS | 3846 | |
| AG CHEM EQUIPMENT | 725896 | |
| AG CHEM EQUIPMENT | 725896 | |
| AGCO | ACW5110990 | |
| AIAG | HF3101F | |
| ATLAS COPCO | 3176722800 | |
| ATLAS COPCO | 3176722800 | |
| ATLAS COPCO | 3176728000 | |
| ATLAS COPCO | 3176728000 | |
| BEHRINGER | BE9600812AV | |
| BEHRINGER | BE9600815AV | |
| BERGERAT MONNOYEUR | E5111 | |
| BERGERAT MONNOYEUR | E5111 | |
| BIG A | 92697 | |
| BIG A | 92697 | |
| BIG A | 91852 | |
| BIG A | 91852 | |
| BOMAG | 853531151 | |
| BOMAG | 853531151 | |
| BOMAG | 5821215 | |
| BOMAG | 5821215 | |
| BOMAG | 07993014 | |
| BOMAG | 07993014 | |
| BOMAG | 7993014 | |
| BOSCH-REXROTH | R928016969 | |
| CARBOCOL | 4051572 | |
| CARBOCOL | 4051572 | |
| CATERPILLAR | 1340694 | |
| CATERPILLAR | 3I0582 | |
| CATERPILLAR | 3I0582 | |
| CINCINNATI | 507054473 | |
| COMPACTION AMERICA | 853531151 | |
| COMPACTION AMERICA | 853531225 | |
| COMPACTION AMERICA | 853531225 | |
| COMPACTION AMERICA | 853531151 | |
| CROSLAND | 7052 | |
| CROSLAND | 7052 | |
| DENISON | DE6020V2U10 | |
| DENISON | DE6021V2C10 | |
| DIAGNETICS | LPA308B12 | |
| DIAGNETICS | LPA308B12 | |
| DIAGNETICS | LPA308V12 | |
| DIAGNETICS | LPA308V12 | |
| DRESSER | VE0452 | |
| DRESSER | VE0452 | |
| DRESSER | VE4452 | |
| DRESSER | VE4452 | |
| EATON | 222AS10049A | |
| EIMCO | 64115773 | |
| EIMCO | 64115773 | |
| EPPENSTEINER | 2HF31H10SLA000V | |
| EPPENSTEINER | 169600SH10XLE000V | |
| EPPENSTEINER | 169600SH10SLE000V | |
| EUCLID | 4051572 | |
| EUCLID | 4051572 | |
| F.B.O. | 47552 | |
| F.B.O. | 47552 | |
| FINN EQUIPMENT | FFKPVL1700610 | |
| FINN EQUIPMENT | FFKPVL1700610 | |
| FODEN | Y05762009 | |
| FODEN | Y05762009 | |
| FORD | E8NNF882BA | |
| FORD | E8NNF882BA | |
| FORD | F2NNF882M | |
| FORD | F2NNF882M | |
| FREIGHTLINER | DNP164166 | |
| FREIGHTLINER | DNP164166 | |
| GFK | PSL0896B212 | |
| GFK | PSL0896B212 | |
| GFK | PSL0896B012 | |
| GFK | PSL0896B012 | |
| GRAINGER | 52YT70 | |
| GREYFRIARS | HF9802FD11 | |
| GREYFRIARS | HF9802FD11 | |
| GROVE | 4272920 | |
| GROVE | 4272920 | |
| HAVAM | HD8950 | |
| HAVAM | HD8950 | |
| HEIL | 0750707001 | |
| HILCO | 383011006C | |
| HITACHI | EU4051572 | |
| HITACHI | EU4051572 | |
| HYDRECO | EHP100B15B | |
| HYDRECO | EHP100B15B | |
| INGERSOLL RAND | 143102 | |
| INGERSOLL RAND | 143102 | |
| JCB | 69000051 | |
| JCB | 69000051 | |
| JOHN DEERE | AL112936 | |
| JOHN DEERE | AL112936 | |
| JOHN DEERE | AL203058 | |
| JOY | 5419963135 | |
| JOY | 5419963135 | |
| KALMAR | N1004087H | |
| KOEHRING | 85351225 | |
| KOEHRING | 85351225 | |
| KOEHRING | 853531225 | |
| KOEHRING | 853531225 | |
| KOMATSU | VE04521 | |
| KOMATSU | VE04521 | |
| KOMATSU | VE0452 | |
| KOMATSU | VE0452 | |
| LHA | LHE622BTA10SB | |
| LHA | LHE622BTA10SB | |
| LOESING | 021910 | |
| LOESING | 021910 | |
| M.D.F. SARL | MDH6614 | |
| M.D.F. SARL | MDH6614 | |
| MANITOWOC | 24272920 | |
| MANITOWOC | 24272920 | |
| MANITOWOC | 4272920 | |
| MANITOWOC | 4272920 | |
| MASSEY FERGUSON | 3621293M1 | |
| MASSEY FERGUSON | 3621293M1 | |
| MASSEY FERGUSON | 3618662M1 | |
| MASSEY FERGUSON | 3618662M1 | |
| MASSEY FERGUSON | 3618662M2 | |
| MODINA | CH802FD11 | |
| MODINA | CH802FD11 | |
| MOOG | B645752 | |
| MOOG | B645752 | |
| MOOG | 07168896A | |
| MOOG | 07168896 | |
| MOOG | 07168896 | |
| MOOG | B645752A | |
| MOOG | B645752V | |
| MOOG | 7168896 | |
| MOOG | 7168896 | |
| MORBARK | 26838134 | |
| MORBARK | 26838134 | |
| MP FILTRI | MP4466 | |
| MP FILTRI | 6010025 | |
| MP FILTRI | 6010025 | |
| MP FILTRI | MP4107 | |
| MP FILTRI | MP4107 | |
| NORCO | HF3110N | |
| NUOVO | RFO37404 | |
| OMT | CHP626F10XN | |
| OMT | CHP626F10XN | |
| P & H | 221046Z35 | |
| P & H | 221046Z35 | |
| PTI | HF3030KFB | |
| PTI | HF3030KFB | |
| PTI | HF3030KFV | |
| SANDVIK | 64115773 | |
| SANDVIK | 64115773 | |
| SANDVIK | 73832473 | |
| SANDVIK | 73832473 | |
| TAMROCK | 64115773 | |
| TAMROCK | 64115773 | |
| TAMROCK | 81893749 | |
| TAMROCK | 81893749 | |
| TIMBERJACK | F008233 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687156 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687156 | |
| VICKERS | V6021B2C10 | |
| VICKERS | V6021B2C10 | |
| VICKERS | V6021B2V10 | |
| VICKERS | V6021B2V10 | |
| VICKERS | 737847 | |
| VICKERS | 737847 | |
| VICKERS | V6021V2V10 | |
| VICKERS | V6021V2C10 | |
| VMC | HF164166 | |
| VMC | HF164166 | |
| VOLVO | 12733419 | |
| WALGAHN-MOTORENTECHN | 00810959 | |
| WALGAHN-MOTORENTECHN | 00810959 | |
| WHITE | E6020B2U10 | |
| WHITE | E6020B2U10 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO ROC 712H-01 | - | DRILLING EQUIPMENT | - | - ROC 712H-01 | - |
| BOMAG BW10AS | - | COMPACTOR | - | - BW10AS | - |
| BOMAG BW12AS | - | COMPACTOR | - | - BW12AS | - |
| BOMAG BW12R | - | COMPACTOR | - | CUMMINS 4B3.9 | - |
| BOMAG BW141 | - | COMPACTOR | - | - BW141 | - |
| BOMAG BW141AC | - | COMPACTOR | - | - BW141AC | - |
| BOMAG BW142 | - | COMPACTOR | - | DEUTZ F3L912 | - |
| BOMAG BW142A | - | COMPACTOR | - | - BW142A | - |
| BOMAG BW142AD | - | COMPACTOR | - | - BW142AD | - |
| BOMAG BW142D | - | COMPACTOR | - | DEUTZ F3L912 | - |
| BOMAG BW142PD | - | COMPACTOR | - | DEUTZ F3L912 | - |
| BOMAG BW142PDB | - | COMPACTOR | - | - BW142PDB | - |
| BOMAG BW144AD2 | - | COMPACTOR | - | - BW144AD2 | - |
| BOMAG BW144D1 | - | COMPACTOR | - | - BW144D1 | - |
| BOMAG BW151AC | - | COMPACTOR | - | - BW151AC | - |
| BOMAG BW151AD | - | COMPACTOR | - | - BW151AD | - |
| BOMAG BW151ADMK2 | - | COMPACTOR | - | - BW151ADMK2 | - |
| BOMAG BW154AC | - | COMPACTOR | - | - BW154AC | - |
| BOMAG BW154AD1 | - | COMPACTOR | - | - BW154AD1 | - |
| BOMAG BW154AD2 | - | COMPACTOR | - | - BW154AD2 | - |
| BOMAG BW161 ADO5 | - | Road roller | - | DEUTZ Deutz TCD3.6L4 Tier 4 Final | - |
| BOMAG BW172 | - | COMPACTOR | - | DEUTZ F4L912 | - |
| BOMAG BW172A | - | COMPACTOR | - | - BW172A | - |
| BOMAG BW172AD | - | COMPACTOR | - | - BW172AD | - |
| BOMAG BW172D | - | COMPACTOR | - | DEUTZ F4L912 | - |
| BOMAG BW172PD | - | COMPACTOR | - | DEUTZ F4L912 | - |
| BOMAG BW213PDB | - | COMPACTOR | - | DEUTZ BF6L913 | - |
| BOMAG BW314D | - | COMPACTOR | - | - BW314D | - |
| JOHN DEERE 3215 | - | HANDLER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 3220 | - | HANDLER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 3400 | - | TELEHANDLER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 3415 | - | HANDLER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 3420 | - | HANDLER | - | JOHN DEERE 4045T | - |
| MASSEY FERGUSON MF3635 | - | TRACTOR | MF 3600 SERIES | PERKINS 1006.6THR2 | - |
| MASSEY FERGUSON MF3635 | - | TRACTOR | MF 3600 SERIES | PERKINS 1006.6T7 | - |
| MASSEY FERGUSON MF3645 | - | TRACTOR | MF 3600 SERIES | PERKINS 1006.6T | - |
| MASSEY FERGUSON MF3655 | - | TRACTOR | MF 3600 SERIES | PERKINS 1006.6THR4 | - |
| MASSEY FERGUSON MF3655 | - | TRACTOR | MF 3600 SERIES | PERKINS 1006.6T4 | - |
| MASSEY FERGUSON MF3670 | - | TRACTOR | MF 3600 SERIES | VALMET 620 DS | - |
| MASSEY FERGUSON MF3680 | - | TRACTOR | MF 3600 SERIES | VALMET 612 DS | - |
| MASSEY FERGUSON MF3690 | - | TRACTOR | MF 3600 SERIES | VALMET 634 DS | - |
| MASSEY FERGUSON MF5465 | - | TRACTOR | MF 5400 SERIES | PERKINS 1106D.E66TA | - |
| MASSEY FERGUSON MF5470 | - | TRACTOR | MF 5400 SERIES | SISU 44CWA-4V | - |
| MASSEY FERGUSON MF5475 | - | TRACTOR | MF 5400 SERIES | PERKINS 1106D.E66TA | TIER 3 |
| MASSEY FERGUSON MF5480 | - | TRACTOR | MF 5400 SERIES | SISU 49CWA-4V | TIER 3 |
| MASSEY FERGUSON MF6160 | - | TRACTOR | MF 6100 SERIES | PERKINS 1006.6HR4 | - |
| MASSEY FERGUSON MF6170 | - | TRACTOR | MF 6100 SERIES | PERKINS 1006.6HR | - |
| MASSEY FERGUSON MF6180 | - | TRACTOR | MF 6100 SERIES | PERKINS 1006.6TLR | - |
| MASSEY FERGUSON MF6190 | - | TRACTOR | MF 6100 SERIES | PERKINS 1006.6THR2 | - |
| MASSEY FERGUSON MF6235 | - | TRACTOR | MF 6200 SERIES | PERKINS 1004.40T | - |
| MASSEY FERGUSON MF6245 | - | TRACTOR | MF 6200 SERIES | PERKINS 1004.40T | - |
| MASSEY FERGUSON MF6255 | - | TRACTOR | MF 6200 SERIES | PERKINS 1004.40T | - |
| MASSEY FERGUSON MF6260 | - | TRACTOR | MF 6200 SERIES | PERKINS 1006.60 | - |
| MASSEY FERGUSON MF6265 | - | TRACTOR | MF 6200 SERIES | PERKINS 1004.40T | - |
| MASSEY FERGUSON MF6270 | - | TRACTOR | MF 6200 SERIES | PERKINS 1006.60T | - |
| MASSEY FERGUSON MF6280 | - | TRACTOR | MF 6200 SERIES | PERKINS 1006.60T | - |
| MASSEY FERGUSON MF6290 | - | TRACTOR | MF 6200 SERIES | PERKINS 1006.60T | - |
| MASSEY FERGUSON MF6445 | - | TRACTOR | MF 6400 SERIES | PERKINS 1104C-44T | - |
| MASSEY FERGUSON MF6445 | - | TRACTOR | MF 6400 SERIES | PERKINS 1104D-E44TA | - |
| MASSEY FERGUSON MF6455 | - | TRACTOR | MF 6400 SERIES | PERKINS 1104C-44T | - |
| MASSEY FERGUSON MF6455 | - | TRACTOR | MF 6400 SERIES | PERKINS 1104D-E44TA | - |
| MASSEY FERGUSON MF6460 | - | TRACTOR | MF 6400 SERIES | SISU 44CWA-4V | - |
| MASSEY FERGUSON MF6460 | - | TRACTOR | MF 6400 SERIES | PERKINS 1104C-44TA | - |
| MASSEY FERGUSON MF6465 | - | TRACTOR | MF 6400 SERIES | PERKINS 1106C.E60TA | - |
| MASSEY FERGUSON MF6465 | - | TRACTOR | MF 6400 SERIES | PERKINS 1106D.E66TA | - |
| MASSEY FERGUSON MF6470 | - | TRACTOR | MF 6400 SERIES | SISU 44CWA-4V | - |
| MASSEY FERGUSON MF6470 | - | TRACTOR | MF 6400 SERIES | PERKINS 1104C-44TA | - |
| MASSEY FERGUSON MF6475 | - | TRACTOR | MF 6400 SERIES | PERKINS 1106C.E60TA | - |
| MASSEY FERGUSON MF6475 | - | TRACTOR | MF 6400 SERIES | PERKINS 1106D.E66TA | - |
| MASSEY FERGUSON MF6480 | - | TRACTOR | MF 6400 SERIES | PERKINS 1106C.E60TA | - |
| MASSEY FERGUSON MF6480 | - | TRACTOR | MF 6400 SERIES | PERKINS 1106D.E66TA | - |
| MASSEY FERGUSON MF6485 | - | TRACTOR | MF 6400 SERIES | SISU 66CTA-4V | - |
| MASSEY FERGUSON MF6485 | - | TRACTOR | MF 6400 SERIES | SISU 66ETA | - |
| MASSEY FERGUSON MF6490 | - | TRACTOR | MF 6400 SERIES | SISU 66ETA | - |
| MASSEY FERGUSON MF6490 | - | TRACTOR | MF 6400 SERIES | SISU 66CTA-4V | - |
| MASSEY FERGUSON MF6495 | - | TRACTOR | MF 6400 SERIES | SISU 66CTA-4V | - |
| MASSEY FERGUSON MF6495 | - | TRACTOR | MF 6400 SERIES | SISU 66ETA | - |
| MASSEY FERGUSON MF6497 | - | TRACTOR | MF 6400 SERIES | SISU 66ETA | - |
| MASSEY FERGUSON MF6497 | - | TRACTOR | MF 6400 SERIES | SISU 74CTA-4V | - |
| MASSEY FERGUSON MF6499 | - | TRACTOR | MF 6400 SERIES | SISU 74CTA-4V | - |
| MASSEY FERGUSON MF6499 | - | TRACTOR | MF 6400 SERIES | SISU 66ETA | - |
| MASSEY FERGUSON MF8110 | - | TRACTOR | MF 8100 SERIES | PERKINS 1006.6THR2 | - |
| MASSEY FERGUSON MF8120 | - | TRACTOR | MF 8100 SERIES | PERKINS 1006.6THR3 | - |
| MASSEY FERGUSON MF8130 | - | TRACTOR | MF 8100 SERIES | PERKINS 1006.60T | - |
| MASSEY FERGUSON MF8140 | - | TRACTOR | MF 8100 SERIES | VALMET 620 DST | - |
| MASSEY FERGUSON MF8150 | - | TRACTOR | MF 8100 SERIES | VALMET 620 DST | - |
| MASSEY FERGUSON MF8160 | - | TRACTOR | MF 8100 SERIES | VALMET 634 DST | - |
| MASSEY FERGUSON MF8170 | - | TRACTOR | MF 8100 SERIES | VALMET 645 DSB8E | - |
| MASSEY FERGUSON MF8180 | - | TRACTOR | MF 8100 SERIES | VALMET 645 DSB8E | - |
| MASSEY FERGUSON MF8220 | - | TRACTOR | MF 8200 SERIES | PERKINS 1006.60T | - |
| MASSEY FERGUSON MF8250 | - | TRACTOR | MF 8200 SERIES | VALMET 634 DS | - |
| MASSEY FERGUSON MF8260 | - | TRACTOR | MF 8200 SERIES | VALMET 634 DSBAE | - |
| MASSEY FERGUSON MF8270 | - | TRACTOR | MF 8200 SERIES | VALMET 645 DSBAE | - |
| MASSEY FERGUSON MF8280 | - | TRACTOR | MF 8200 SERIES | VALMET 645 DSBAE | - |
| VALTRA N104 Hitech | 2015 - 2021 | TRACTOR | N Series | SISU 44 AWF | - |
| VALTRA N114EH | 2015 - 2021 | TRACTOR | N Series | SISU 44 AWF | - |
| VALTRA N124H | 2015 - 2021 | TRACTOR | N Series | SISU 44 AWF | - |
| VALTRA N134H | 2015 - 2021 | TRACTOR | N Series | SISU 49 AWF | - |
| VALTRA N154E | 2015 - 2021 | TRACTOR | N Series | SISU 49 AWF | - |
| VALTRA N174H | 2015 - 2021 | TRACTOR | N Series | SISU 49 AWF | - |
| VALTRA T144 | 2015 | TRACTOR | - | AGCO 66AWF | - |
| VALTRA T154 | 2015 | TRACTOR | - | AGCO 66AWF | - |
| VALTRA T174E | 2014 | TRACTOR | T SERIES | AGCO 74AWF | - |
| VALTRA T194 | 2014 | TRACTOR | T SERIES | AGCO 74AWF | - |
| VALTRA T214 | 2014 | TRACTOR | T SERIES | AGCO 74AWF | - |
| VALTRA T234 | 2014 | TRACTOR | T SERIES | AGCO 74AWF | - |
| VALTRA T254 | 2017 | TRACTOR | - | AGCO 74AWF | - |
