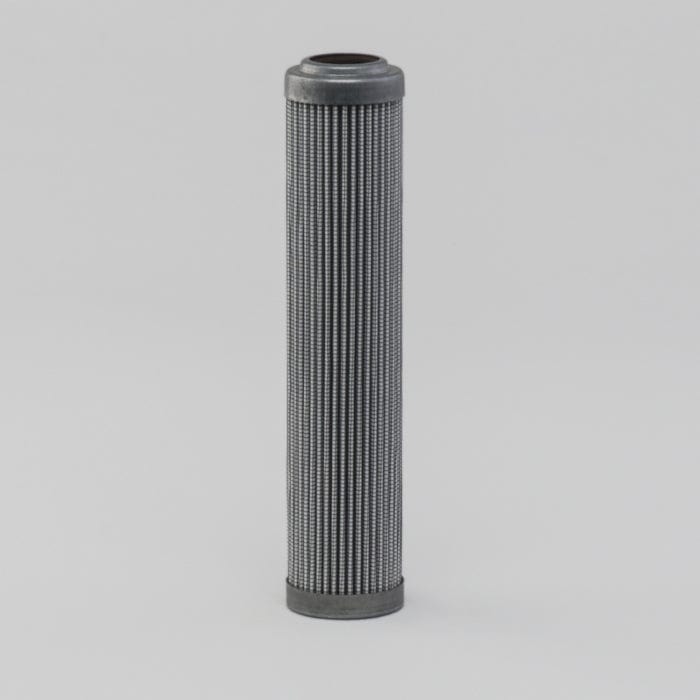

Hydraulic Filter, Cartridge Dt - Donaldson P566200

Attributes

• Seal Material: Viton
• Outer Diameter: 45 mm (1.77 inch)
• Inner Diameter: 24.4 mm (0.96 inch)
• Overall Length: 207.8 mm (8.18 inch)
• Efficiency Beta 1000: 5 micron
• Collapse Burst: 17.2 bar (249 psi)
• Style: Cartridge
• Series: HPK02
• W440:
• FPK02:
• Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.059 m (2.36 inch)
• Packaged Width: 0.069 m (2.76 inch)
• Packaged Height: 0.217 m (8.66 inch)
• Packaged Weight: 0.232 kg (0.51 lb)
• Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-09
• HTS Code: 8421298090
• UPC Code: 742330174920
