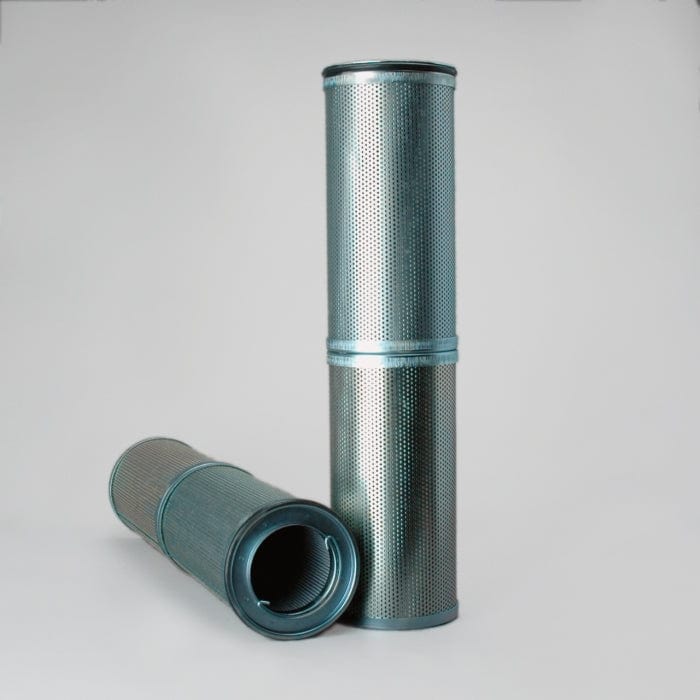

Hydraulic Filter, Cartridge - Donaldson P784037
Hydraulic Filter, Cartridge - Donaldson P784037
Regular price
£200.22
Regular price
Sale price
£200.22
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P784037
Hydraulic Filter, Cartridge| Outer Diameter | 6.14 inch (156 mm) |
| Inner Diameter | 3.94 inch (100 mm) |
| Length | 24.49 inch (622 mm) |
| Overall Length | 24.84 inch (631 mm) |
| Efficiency Beta 2 | 5 micron |
| Efficiency Beta 1000 | 24 micron |
| Collapse Burst | 145 psi (10 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 156 mm (6.14 inch)
- Inner Diameter: 100 mm (3.94 inch)
- Length: 622 mm (24.49 inch)
- Overall Length: 631 mm (24.84 inch)
- Efficiency Beta 2: 5 micron
- Efficiency Beta 1000: 24 micron
- Collapse Burst: 10 bar (145 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.165 m (6.60 inch)
- Packaged Width: 0.165 m (6.60 inch)
- Packaged Height: 0.648 m (25.90 inch)
- Packaged Weight: 4.740 kg (10.45 lb)
- Packaged Volume: 0.018 m3 (0.65 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-09
- HTS Code: 8421298090
- UPC Code: 742330160756
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| LIEBHERR | 14546747 | |
| LIEBHERR | 11060250 | |
| LIEBHERR | HE393 | |
| LIEBHERR | 7368770 | |
| LIEBHERR | 7373881 | |
| VMC | HF784037 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| LIEBHERR A934 | - | EXCAVATOR WHEELED | A SERIES | LIEBHERR D924TI-E | - |
| LIEBHERR A934B | - | EXCAVATOR WHEELED | A SERIES | LIEBHERR D924TI-E | - |
| LIEBHERR A934C | - | EXCAVATOR WHEELED | A SERIES | LIEBHERR D934L | - |
| LIEBHERR A944 | - | EXCAVATOR WHEELED | A SERIES | LIEBHERR D926T-E | - |
| LIEBHERR A944B | - | EXCAVATOR WHEELED | A SERIES | LIEBHERR D926TI-E | - |
| LIEBHERR A944C | - | EXCAVATOR WHEELED | A SERIES | LIEBHERR D936L | - |
| LIEBHERR A974B | - | EXCAVATOR WHEELED | A SERIES | LIEBHERR D9408TI-E | - |
| LIEBHERR R934 LITRONIC | - | EXCAVATOR TRACKED | R SERIES | LIEBHERR D924TI-E | - |
| LIEBHERR R934C | - | EXCAVATOR TRACKED | R SERIES | LIEBHERR D934L | - |
| LIEBHERR R944 LITRONIC | - | EXCAVATOR TRACKED | R SERIES | LIEBHERR D926T-EA2 | - |
| LIEBHERR R944C | - | EXCAVATOR TRACKED | R SERIES | LIEBHERR D936L | - |
| LIEBHERR R964 | - | EXCAVATOR TRACKED | R SERIES | CUMMINS NT855 | - |
| LIEBHERR R964 LITRONIC | - | EXCAVATOR TRACKED | R SERIES | CUMMINS NT855 | - |
| LIEBHERR R964B | - | EXCAVATOR TRACKED | R SERIES | LIEBHERR D9406TI-E | - |
| LIEBHERR R964C | - | EXCAVATOR TRACKED | R SERIES | LIEBHERR D9508 | - |
| LIEBHERR R974B | - | EXCAVATOR TRACKED | R SERIES | LIEBHERR D9408TIE | - |
| LIEBHERR R974C | - | EXCAVATOR TRACKED | R SERIES | LIEBHERR D9508 | - |
