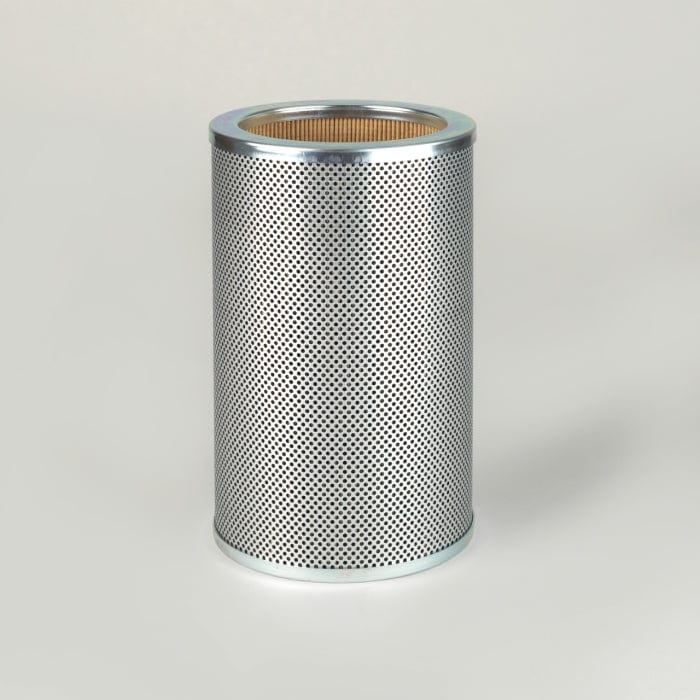

Hydraulic Filter, Cartridge - Donaldson P761354
Hydraulic Filter, Cartridge - Donaldson P761354
Regular price
£80.22
Regular price
Sale price
£80.22
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P761354
Hydraulic Filter, CartridgeShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 202 mm (7.95 inch)
- Inner Diameter: 14.2 mm (0.56 inch)
- Length: 330 mm (12.99 inch)
- Efficiency Beta 2: 10 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.5 bar (22 psi)
- Collapse Burst: 10 bar (145 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.217 m (8.66 inch)
- Packaged Width: 0.207 m (8.27 inch)
- Packaged Height: 0.404 m (16.14 inch)
- Packaged Weight: 3.054 kg (6.73 lb)
- Packaged Volume: 0.019 m3 (0.67 ft3)
Other Information
- Country of Origin: Italy
- HTS Code: 8421298090
- UPC Code: 742330116715
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ATLAS | 385673 | |
| CASE/CASE IH | H1050532 | |
| MP FILTRI | MR8501P10A |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS WEYHAUSEN 1622D | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F5L912 | - |
