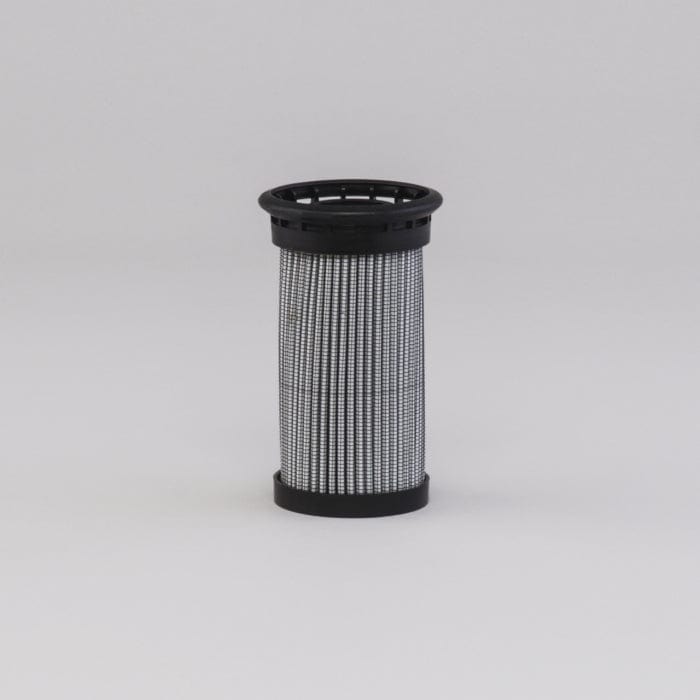

Hydraulic Filter, Cartridge - Donaldson P575347
Hydraulic Filter, Cartridge - Donaldson P575347
Regular price
£52.38
Regular price
Sale price
£52.38
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P575347
Hydraulic Filter, CartridgeShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 72 mm (2.83 inch)
- Inner Diameter: 27.9 mm (1.10 inch)
- Length: 121.4 mm (4.78 inch)
- Gasket OD: 32.05 mm (1.26 inch)
- Gasket ID: 24.99 mm (0.98 inch)
- Overall Length: 124.2 mm (4.89 inch)
- Efficiency Beta 200: 11.5 micron
- Efficiency Beta 1000: 15 micron
- Efficiency Test Std: ISO 16889
- Bypass Valve Setting HR: 4.14 bar (60 psi)
- Collapse Burst: 10.3 bar (149 psi)
- Maximum Operating Temperature: 107 °C (225 °F)
- Style: Cartridge
- Media Brand: Synteq XP™
- Primary Application: BOBCAT 6692337
Packaged Dimensions
- Packaged Length: 0.090 m (3.60 inch)
- Packaged Width: 0.085 m (3.40 inch)
- Packaged Height: 0.140 m (5.60 inch)
- Packaged Weight: 0.222 kg (0.49 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330984406
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BOBCAT | 6692337 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| BOBCAT A300 | - | SKID STEER LOADER | A SERIES | KUBOTA V3300 | - |
| BOBCAT A300 | - | SKID STEER LOADER | A SERIES | KUBOTA V3300DI | - |
| BOBCAT A770 | - | SKID STEER LOADER | - | BOBCAT D34 | - |
| BOBCAT S130 | - | SKID STEER LOADER | S SERIES | KUBOTA V2003MDI | - |
| BOBCAT S150 | - | SKID STEER LOADER | S SERIES | KUBOTA V2003MDI | - |
| BOBCAT S160 | - | SKID STEER LOADER | S SERIES | KUBOTA V2203DI | - |
| BOBCAT S175 | - | SKID STEER LOADER | S SERIES | KUBOTA V2003MDI | - |
| BOBCAT S185 | - | SKID STEER LOADER | S SERIES | KUBOTA V2003MT | - |
| BOBCAT S205 | - | SKID STEER LOADER | S SERIES | KUBOTA V2403MDI | - |
| BOBCAT S220 | - | SKID STEER LOADER | S SERIES | KUBOTA V3300DIB | - |
| BOBCAT S250 | - | SKID STEER LOADER | - | KUBOTA V3300-DI-TB | - |
| BOBCAT S300 | - | SKID STEER LOADER | - | KUBOTA V3300-DI-TB | - |
| BOBCAT S330 | - | SKID STEER LOADER | S SERIES | - S330 | - |
| BOBCAT S450 | - | SKID STEER LOADER | - | BOBCAT D18 | Tier 4 Diesel |
| BOBCAT S510 | - | SKID STEER LOADER | - | BOBCAT D24 | - |
| BOBCAT S530 | - | SKID STEER LOADER | - | BOBCAT D24 | - |
| BOBCAT S550 | - | SKID STEER LOADER | - | BOBCAT D24 | - |
| BOBCAT S570 | - | SKID STEER LOADER | - | BOBCAT D24 | - |
| BOBCAT S590 | - | SKID STEER LOADER | - | BOBCAT D24 | - |
| BOBCAT S630 | - | SKID STEER LOADER | - | BOBCAT D24 | - |
| BOBCAT S630 | - | SKID STEER LOADER | S SERIES | KUBOTA V3307DIT | - |
| BOBCAT S650 | - | SKID STEER LOADER | - | BOBCAT D24 | - |
| BOBCAT S650 | - | SKID STEER LOADER | S SERIES | KUBOTA V3307DIT | - |
| BOBCAT S750 | - | SKID STEER LOADER | S SERIES | KUBOTA V3800DITE | - |
| BOBCAT S750 | - | SKID STEER LOADER | - | BOBCAT D34 | - |
| BOBCAT S850 | - | SKID STEER LOADER | S SERIES | KUBOTA V3800DITE | - |
| BOBCAT T180 | - | LOADER COMPACT TRACKED | T SERIES | KUBOTA V2403MDIT | - |
| BOBCAT T190 | - | LOADER COMPACT TRACKED | T SERIES | KUBOTA V2403MDIT | - |
| BOBCAT T250 | - | LOADER COMPACT TRACKED | T SERIES | KUBOTA V3300DIT | - |
| BOBCAT T300 | - | LOADER COMPACT TRACKED | T SERIES | KUBOTA V3300DITBC | - |
| BOBCAT T320 | - | LOADER COMPACT TRACKED | T SERIES | KUBOTA V3800DITE | - |
| BOBCAT T450 | - | LOADER COMPACT TRACKED | - | BOBCAT D24 | - |
| BOBCAT T550 | - | LOADER COMPACT TRACKED | - | BOBCAT D24 | - |
| BOBCAT T590 | - | LOADER COMPACT TRACKED | - | BOBCAT D24 | - |
| BOBCAT T590 | - | LOADER COMPACT TRACKED | - | - T590 | - |
| BOBCAT T630 | - | LOADER COMPACT TRACKED | - | BOBCAT D24 | - |
| BOBCAT T630 | - | LOADER COMPACT TRACKED | T SERIES | KUBOTA V3307DIT | - |
| BOBCAT T650 | - | LOADER COMPACT TRACKED | - | BOBCAT D24 | - |
| BOBCAT T650 | - | LOADER TRACKED | T SERIES | DOOSAN D24 | - |
| BOBCAT T750 | - | SKID STEER LOADER | - | KUBOTA V3800-DI-T-E | - |
| BOBCAT T870 | - | LOADER COMPACT TRACKED | - | KUBOTA V3800DITE | - |
