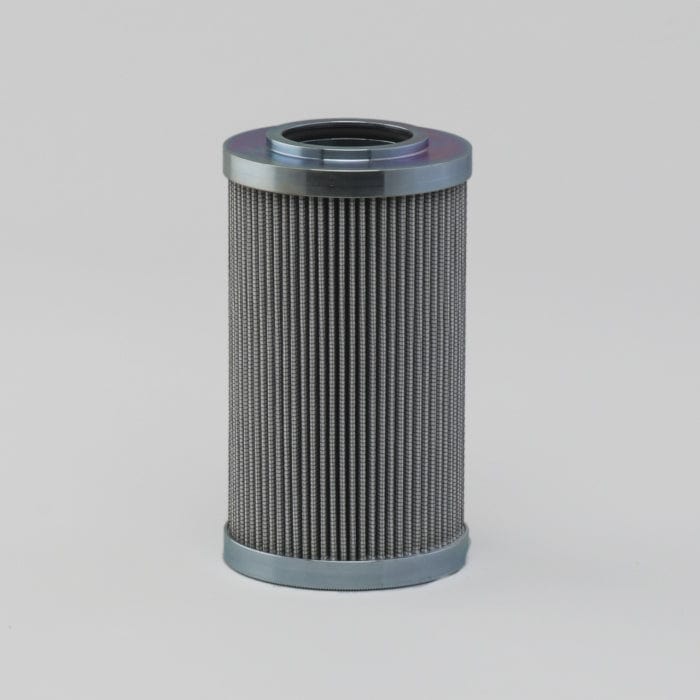

Hydraulic Filter, Cartridge - Donaldson P574864

Attributes

• Mesh Rating: 75 micron
• Outer Diameter: 90.7 mm (3.57 inch)
• Inner Diameter: 48.1 mm (1.89 inch)
• Gasket OD: 54.28 mm (2.14 inch)
• Gasket ID: 47.22 mm (1.86 inch)
• Overall Length: 163 mm (6.42 inch)
• Efficiency Beta 2: 75 micron
• Collapse Burst: 207 bar (3002 psi)
• Style: Cartridge
• Media Type: Wire Mesh

Packaged Dimensions

• Packaged Length: 0.105 m (4.20 inch)
• Packaged Width: 0.105 m (4.20 inch)
• Packaged Height: 0.180 m (7.20 inch)
• Packaged Weight: 1.353 kg (2.98 lb)
• Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 133320
• HTS Code: 8421298090
• UPC Code: 742330981429
