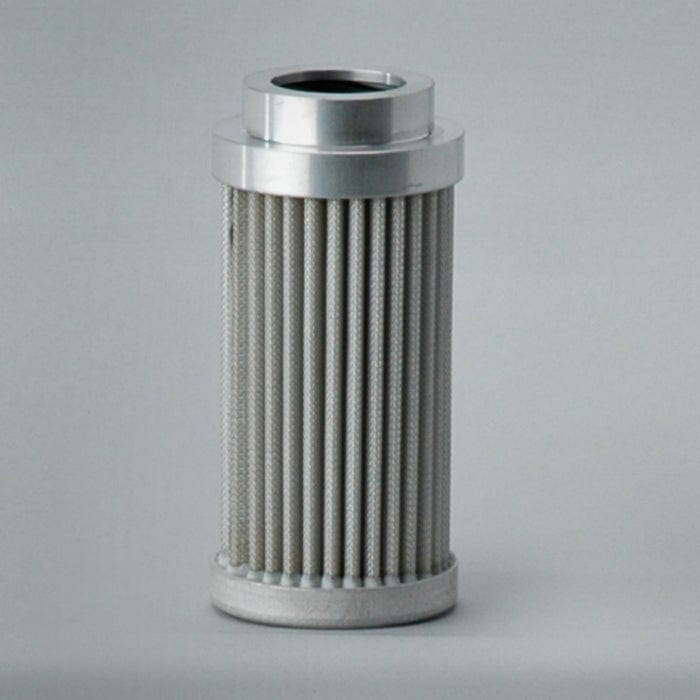

Hydraulic Filter, Cartridge - Donaldson P572301

Attributes

• Seal Material: Viton
• Outer Diameter: 41.71 mm (1.64 inch)
• Inner Diameter: 22.35 mm (0.88 inch)
• Gasket OD: 28.88 mm (1.14 inch)
• Gasket ID: 21.82 mm (0.86 inch)
• Overall Length: 87.3 mm (3.44 inch)
• Efficiency Beta 2: 4 micron
• Efficiency Beta 20: 4 micron
• Efficiency Beta 200: 4 micron
• Efficiency Beta 1000: 5 micron
• Collapse Burst: 210.1 bar (3047 psi)
• Style: Cartridge
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.059 m (2.36 inch)
• Packaged Width: 0.069 m (2.76 inch)
• Packaged Height: 0.138 m (5.51 inch)
• Packaged Weight: 0.209 kg (0.46 lb)
• Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330963388
