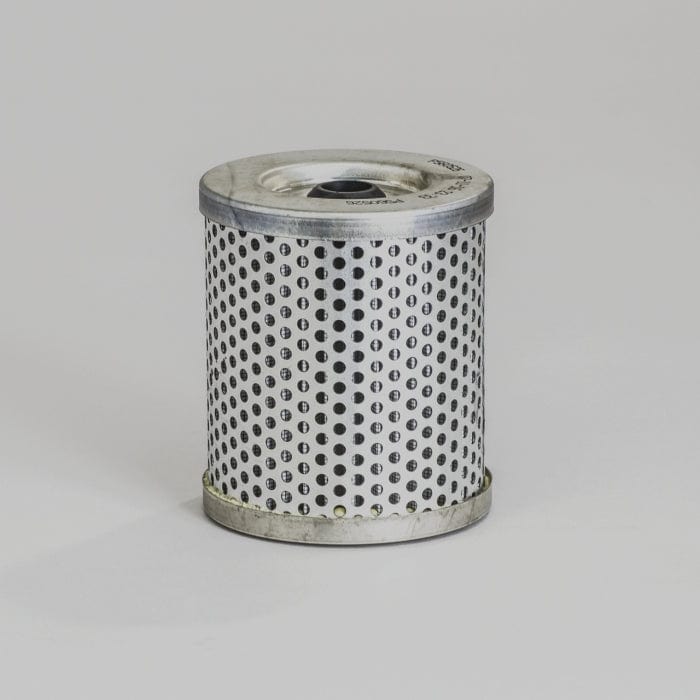

Hydraulic Filter, Cartridge - Donaldson P560526
Hydraulic Filter, Cartridge - Donaldson P560526
Regular price
£32.86
Regular price
Sale price
£32.86
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P560526
Hydraulic Filter, Cartridge| Outer Diameter | 4.39 inch (111.51 mm) |
| Inner Diameter | 2.44 inch (62 mm) |
| Length | 5.00 inch (127 mm) |
| Efficiency Beta 2 | 2 micron |
| Efficiency Beta 20 | 33 micron |
| Collapse Burst | 125 psi (8.6 bar) |
| Style | Cartridge |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 111.51 mm (4.39 inch)
- Inner Diameter: 62 mm (2.44 inch)
- Length: 127 mm (5.00 inch)
- Efficiency Beta 2: 2 micron
- Efficiency Beta 20: 33 micron
- Collapse Burst: 8.6 bar (125 psi)
- Style: Cartridge
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.118 m (4.70 inch)
- Packaged Width: 0.120 m (4.80 inch)
- Packaged Height: 0.143 m (5.70 inch)
- Packaged Weight: 0.499 kg (1.10 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330123188
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| GARDNER DENVER | 2109394 | |
| JOY | 012283370014 | |
| JOY | 12283370014 |
