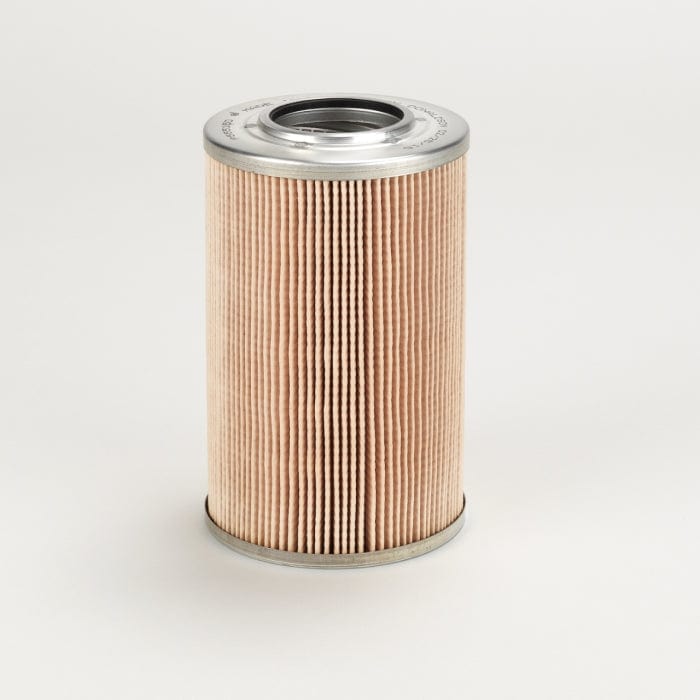

Hydraulic Filter, Cartridge - Donaldson P555150
Hydraulic Filter, Cartridge - Donaldson P555150
Regular price
Ā£19.76
Regular price
Sale price
Ā£19.76
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P555150
Hydraulic Filter, Cartridge| Outer Diameter | 4.50 inch (114.3 mm) |
| Inner Diameter | 2.22 inch (56.5 mm) |
| Length | 7.09 inch (180 mm) |
| Efficiency Beta 2 | 1 micron |
| Efficiency Beta 20 | 21 micron |
| Efficiency Beta 1000 | 23 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 114.3 mm (4.50 inch)
- Inner Diameter: 56.5 mm (2.22 inch)
- Length: 180 mm (7.09 inch)
- Efficiency Beta 2: 1 micron
- Efficiency Beta 20: 21 micron
- Efficiency Beta 1000: 23 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.118 m (4.72 inch)
- Packaged Width: 0.118 m (4.72 inch)
- Packaged Height: 0.177 m (7.09 inch)
- Packaged Weight: 0.424 kg (0.94 lb)
- Packaged Volume: 0.003 m3 (0.09 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330044964
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF818 | |
| AC DELCO | PF844 | |
| AC DELCO | PF1081 | |
| ALLIS-CHALMERS | 795132 | |
| ALLIS-CHALMERS | 664000 | |
| ALLIS-CHALMERS | 0667661 | |
| ALLIS-CHALMERS | 6662456 | |
| ALLIS-CHALMERS | 6676605 | |
| ALLIS-CHALMERS | 667660 | |
| ALLIS-CHALMERS | 706795132 | |
| ALLIS-CHALMERS | 70679513 | |
| ALLIS-CHALMERS | 06795132 | |
| ALLIS-CHALMERS | 6676613 | |
| ALLIS-CHALMERS | 67661 | |
| ALLIS-CHALMERS | 6795132 | |
| AMERICAN PARTS | 92408 | |
| AMERICAN PARTS | 92427 | |
| AMERICAN PARTS | 92424 | |
| AMERICAN PARTS | 92635 | |
| AMERICAN PARTS | 2024 | |
| AMERICAN PARTS | 2021 | |
| BARBER-GREENE | 12S71 | |
| BIG A | 2024 | |
| BIG A | 2021 | |
| BIG A | 92635 | |
| BIG A | 92427 | |
| BIG A | 92424 | |
| BIG A | 92408 | |
| CASE/CASE IH | 107747 | |
| CASE/CASE IH | 896811C1 | |
| CATERPILLAR | 3I1323 | |
| CHAMP | LP712 | |
| CHAMPION ROAD | 5763665110 | |
| CLARK | 993311 | |
| CLARK | 993611 | |
| CLARK | 60119 | |
| CLARK | 5290643 | |
| CLARK | 5201387 | |
| CLARK,J.L. | 6591038 | |
| CLARK,J.L. | 6511280 | |
| COLT | 22722 | |
| COOPERS | HEM6022 | |
| COOPERS | HEM6074 | |
| DANA | 621006 | |
| DANA | 621001 | |
| DANA | F1001 | |
| DANA | F100125 | |
| DRESSER | 896811C1 | |
| DRESSER | 996811C1 | |
| DYNAHOE | 167747 | |
| DYNAHOE | 107747 | |
| DYNAHOE | 5763665125 | |
| DYNAHOE | M32025125 | |
| FAMEL | FA231H | |
| FIAAM | FA4938 | |
| FIAT | 76795132 | |
| FIAT | 6795132 | |
| FIAT | 667661 | |
| FIAT | 70667660 | |
| FIAT | 70667661 | |
| FIAT | 70666245 | |
| FIAT | 70664000 | |
| FIAT | 70679513 | |
| FIAT | 706795132 | |
| FIATALLIS | 70679513 | |
| FILT | FF446 | |
| FLOW EZY | 626616 | |
| FLOW EZY | 626615 | |
| FMC | 3A11654 | |
| FORD | 7705675 | |
| FORD | 251483 | |
| FORD | 3900612 | |
| FREIGHTLINER | DNP555150 | |
| FURUKAWA | 996811C1 | |
| GRADALL | 7040210 | |
| GROVE | 9437100071 | |
| GROVE | 94371000071 | |
| GROVE | 943710071 | |
| HEIN-WERNER | 50063 | |
| HEIN-WERNER | 050063 | |
| HITACHI | 70679513 | |
| HITACHI | 706795132 | |
| INTERNATIONAL | 896811C1 | |
| INTERNATIONAL | 8968811C1 | |
| JLG | 7040210 | |
| JOHN BEAN | 3A11654 | |
| JOHN DEERE | AT71582 | |
| JOHN DEERE | AT45810 | |
| JOY | HF6165 | |
| KOMATSU | 896811C1 | |
| KRALINATOR | L915 | |
| LINK BELT | 3A11654 | |
| LOESING | 25065 | |
| LOESING | 025065 | |
| MARVEL | M34015110 | |
| MARVEL | M32025125 | |
| MARVEL | M3202 | |
| MARVEL | M39827110 | |
| MARVEL | M36345110 | |
| MARVEL | M34045110 | |
| MARVEL | 5763667110 | |
| MARVEL | 5763665140 | |
| MARVEL | 5763665125 | |
| MARVEL | 5763665110 | |
| MARVEL | 576366 | |
| MARVEL | 54500 | |
| MARVEL | 2552412500 | |
| MARVEL | 2552022500 | |
| MARVEL | 51500 | |
| MINNPAR | 70679513P | |
| MINNPAR | 70679513 | |
| REFILCO | PL514515 | |
| REFILCO | PL507105 | |
| REFILCO | PL507255 | |
| REFILCO | PL5071015 | |
| RICHIER | 556018701 | |
| SAVARA | 92152417 | |
| STEWART & STEVENSON | 145084 | |
| TECHNOCAR | OP474 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688908 | |
| VMC | HF555150 | |
| VMC | LF555150 | |
| WALGAHN-MOTORENTECHN | 00811430 | |
| WALGAHN-MOTORENTECHN | 811430 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ALLIS-CHALMERS 545 | - | MISC EQUIPMENT | - | ALLIS-CHALMERS 2900 | - |
| ALLIS-CHALMERS 545B | - | AGRICULTURAL EQUIPMENT | - | ALLIS-CHALMERS 2900 MKII | - |
| ALLIS-CHALMERS 545H | - | MISC EQUIPMENT | - | ALLIS-CHALMERS 2900 | - |
| ALLIS-CHALMERS 605B | - | AGRICULTURAL EQUIPMENT | - | ALLIS-CHALMERS 2900 MKII | - |
| ALLIS-CHALMERS 645 | - | AGRICULTURAL EQUIPMENT | - | ALLIS-CHALMERS 3500 | - |
| ALLIS-CHALMERS 645 | - | AGRICULTURAL EQUIPMENT | - | ALLIS-CHALMERS 3500 MKII | - |
| ALLIS-CHALMERS 745 | - | MISC EQUIPMENT | - | ALLIS-CHALMERS 11000 | - |
| ALLIS-CHALMERS 745H | - | MISC EQUIPMENT | - | ALLIS-CHALMERS 11000 | - |
| ALLIS-CHALMERS 7G | - | TRACTOR | - | ALLIS-CHALMERS 3500 | - |
| ALLIS-CHALMERS HD7G | - | TRACTOR | - | ALLIS-CHALMERS 3500 | - |
| ALLIS-CHALMERS NA | - | LOADER | - | ALLIS-CHALMERS 11000 MKII | - |
| ALLIS-CHALMERS TL545 | - | LOADER | - | ALLIS-CHALMERS 2900 MKII | - |
| ALLIS-CHALMERS TL545 | - | LOADER | - | ALLIS-CHALMERS 2900 | - |
| ALLIS-CHALMERS TL545H | - | LOADER | - | ALLIS-CHALMERS 2900 | - |
| ALLIS-CHALMERS TL605B | - | LOADER | - | ALLIS-CHALMERS 2900 MKII | - |
| ALLIS-CHALMERS TL645B | - | LOADER | - | ALLIS-CHALMERS 3500 MKII | - |
| ALLIS-CHALMERS TL745 | - | LOADER | - | ALLIS-CHALMERS 11000 | - |
| ALLIS-CHALMERS TL745B | - | LOADER | - | ALLIS-CHALMERS 11000 MKII | - |
| ALLIS-CHALMERS TL745C | - | LOADER | - | ALLIS-CHALMERS 11000 MKII | - |
| CLARK 101 | - | GRADER | - | - 101 | - |
| CLARK 301 | - | GRADER | - | - 301 | - |
| CLARK 410-410SR | - | CRANE | - | INTERNATIONAL UB264 | - |
| CLARK 4100-4125 | - | GRADER | - | INTERNATIONAL UV345 | - |
| CLARK 4100-4125 | - | GRADER | - | DETROIT DIESEL 4-53 | - |
| CLARK 501 | - | GRADER | - | DETROIT DIESEL 6V-71N | - |
| CLARK 501 | - | GRADER | - | CUMMINS VT555 | - |
| CLARK 720 | - | CRANE | - | DETROIT DIESEL - | - |
| CLARK 720-05 | - | CRANE | - | CUMMINS V504 | - |
| CLARK 720-05 | - | CRANE | - | DETROIT DIESEL 6V-53N | - |
| CLARK 736M | - | CRANE | - | - 736M | - |
| DYNAHOE 160 | - | BACKHOE LOADER | - | DETROIT DIESEL 3-53 | - |
| DYNAHOE 190 | - | BACKHOE LOADER | - | - 190 | - |
| DYNAHOE BU10 | - | BACKHOE LOADER | - | - BU10 | - |
| DYNAHOE BU12 | - | BACKHOE LOADER | - | - BU12 | - |
| DYNAHOE BU15 | - | BACKHOE LOADER | - | - BU15 | - |
| DYNAHOE BU20 | - | BACKHOE LOADER | - | - BU20 | - |
| DYNAHOE BU25 | - | BACKHOE LOADER | - | - BU25 | - |
| DYNAHOE HU15 | - | BACKHOE LOADER | - | - HU15 | - |
| DYNAHOE HU30 | - | BACKHOE LOADER | - | - HU30 | - |
| DYNAHOE JU20 | - | BACKHOE LOADER | - | - JU20 | - |
| DYNAHOE KBU20 | - | BACKHOE LOADER | - | - KBU20 | - |
| DYNAHOE KBU25 | - | BACKHOE LOADER | - | - KBU25 | - |
| DYNAHOE KBU30 | - | BACKHOE LOADER | - | - KBU30 | - |
| DYNAHOE KBU31 | - | BACKHOE LOADER | - | - KBU31 | - |
| DYNAHOE KBU36 | - | BACKHOE LOADER | - | - KBU36 | - |
| DYNAHOE KHU30 | - | BACKHOE LOADER | - | - KHU30 | - |
| DYNAHOE KJU20 | - | BACKHOE LOADER | - | - KJU20 | - |
| FIAT 545 | - | LOADER | - | - 545 | - |
| FIAT 545B | - | LOADER | - | ALLIS-CHALMERS 2900 MKII | - |
| FIAT 605B | - | LOADER | - | ALLIS-CHALMERS 2900 MKII | - |
| FIAT 645B | - | LOADER | - | ALLIS-CHALMERS 3500 MKII | - |
| FIAT 745B | - | LOADER | - | ALLIS-CHALMERS 11000 MKII | - |
| FIAT 745C | - | LOADER | - | ALLIS-CHALMERS 11000 MKII | - |
| FIAT 745HB | - | LOADER | - | ALLIS-CHALMERS 11000 MKII | - |
| FIATALLIS 545 | - | LOADER | - | FIAT 8340.04 | - |
| FIATALLIS 545B | - | LOADER | - | ALLIS-CHALMERS 2900 MKII | - |
| FIATALLIS 605B | - | LOADER | - | ALLIS-CHALMERS 2900 MKII | - |
| FIATALLIS 645B | - | LOADER | - | ALLIS-CHALMERS 3500 MKII | - |
| FIATALLIS 745B | - | LOADER | - | ALLIS-CHALMERS 11000 MKII | - |
| FIATALLIS 745C | - | LOADER | - | ALLIS-CHALMERS 11000 MKII | - |
| FIATALLIS 745HB | - | LOADER | - | ALLIS-CHALMERS 11000 MKII | - |
| FORD 445 | - | LOADER | - | - 445 | - |
| FORD 55 | - | LOADER | - | - 55 | - |
| FORD 550 | - | BACKHOE LOADER | - | FORD 201 | - |
| FORD 555 | - | TRACTOR | - | - 555 | - |
| FORD 555B | - | BACKHOE LOADER | - | - 555B | - |
| FORD 55A | - | LOADER | - | - 55A | - |
| FORD 650 | - | TRACTOR | - | FORD 256 | - |
| FORD 6500 | - | TRACTOR | - | - 6500 | - |
| FORD 655A | - | BACKHOE LOADER | - | - 655A | - |
| FORD 750 | - | TRACTOR | - | FORD 256 | - |
| FORD 7500 | - | TRACTOR | - | - 7500 | - |
| FORD 755 | - | TRACTOR | - | - 755 | - |
| FORD A-62 | - | LOADER WHEELED | - | - A-62 | - |
| GROVE 1012 | - | CRANE | - | - 1012 | - |
| GROVE 36 | - | CRANE | - | - 36 | - |
| GROVE 68 | - | CRANE | - | - 68 | - |
| JOHN DEERE 690B | - | EXCAVATOR | - | - 690B | - |
| JOHN DEERE 693B | - | FELLER BUNCHER | - | - 693B | - |
| JOHN DEERE 855 | - | LOADER TRACKED | - | JOHN DEERE 855 | - |
| JOHN DEERE 855 | - | LOADER TRACKED | - | JOHN DEERE 6619A | - |
| JOHN DEERE 890 | - | EXCAVATOR | - | JOHN DEERE 890 | - |
| JOHN DEERE 890A | - | EXCAVATOR | - | JOHN DEERE 890A | - |
| KOMATSU 560 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DT817C | - |
| KOMATSU 560 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DVT800 | - |
| KOMATSU D100 | - | EARTH MOVING EQUIPMENT | - | - D100 | - |
| KOMATSU D120 | - | DOZER TRACKED | - | CASE/CASE IH DT817B | - |
| KOMATSU H100 | - | LOADER WHEELED | - | - H100 | - |
| KOMATSU H100C | - | LOADER WHEELED | - | CASE/CASE IH DT817 | - |
| KOMATSU H120B | - | LOADER WHEELED | - | - H120B | - |
| KOMATSU H120C | - | LOADER WHEELED | - | - H120C | - |
| KOMATSU H400B | - | LOADER | - | - H400B | - |
| KOMATSU L100 | - | EARTH MOVING EQUIPMENT | - | - L100 | - |
| NEW HOLLAND 6500 | - | TRACTOR | - | FPT INDUSTRIAL F5C88 | - |
| NEW HOLLAND 655A | - | BACKHOE LOADER | - | FORD BSD442 | - |
| NEW HOLLAND 7500 | - | TRACTOR | - | FPT INDUSTRIAL F5C-88 | - |
| NEW HOLLAND 755 | - | BACKHOE LOADER | - | FORD ESD662 | - |
| NEW HOLLAND A62 | - | EXCAVATOR WHEELED | - | FORD BSD442T | - |
| P & H OMEGA M.T. 13.5 | - | CRANE | - | DETROIT DIESEL 4-53N | - |
| P & H OMEGA M.T. 16.2 | - | CRANE | - | DETROIT DIESEL 4-53N | - |
| P & H OMEGA M.T. 18.1 | - | CRANE | - | DETROIT DIESEL 4-53N | - |
