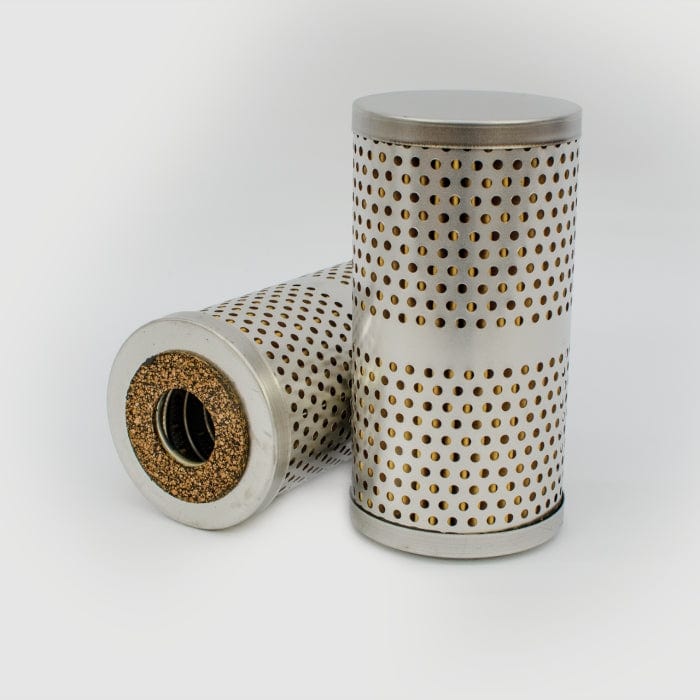

Hydraulic Filter, Cartridge - Donaldson P551753
Hydraulic Filter, Cartridge - Donaldson P551753
Regular price
Ā£18.64
Regular price
Sale price
Ā£18.64
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551753
Hydraulic Filter, Cartridge| Outer Diameter | 2.90 inch (73.7 mm) |
| Inner Diameter | 1.06 inch (27 mm) |
| Length | 5.65 inch (143.6 mm) |
| Efficiency Beta 2 | 25 micron |
| Efficiency Beta 20 | 4 micron |
| Collapse Burst | 49 psi (3.4 bar) |
| Style | Cartridge |
| Primary Application | CATERPILLAR 1R0746 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 73.7 mm (2.90 inch)
- Inner Diameter: 27 mm (1.06 inch)
- Length: 143.6 mm (5.65 inch)
- Efficiency Beta 2: 25 micron
- Efficiency Beta 20: 4 micron
- Collapse Burst: 3.4 bar (49 psi)
- Style: Cartridge
- Primary Application: CATERPILLAR 1R0746
Packaged Dimensions
- Packaged Length: 0.085 m (3.40 inch)
- Packaged Width: 0.085 m (3.40 inch)
- Packaged Height: 0.153 m (6.10 inch)
- Packaged Weight: 0.207 kg (0.46 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-02
- HTS Code: 8421298090
- UPC Code: 742330137918
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 92089 | |
| CATERPILLAR | 1R0746 | |
| VMC | HF551753 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 910 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 926E | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204 DIT | - |
| CATERPILLAR 926F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 930 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 931B LGP | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 931C LGP | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 935C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D10R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3412E | - |
| CATERPILLAR D7G | - | DOZER TRACKED | - | CATERPILLAR 3306 | - |
| CATERPILLAR D8R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR D9R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3408E | - |
| CATERPILLAR IT12 | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT18 | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
