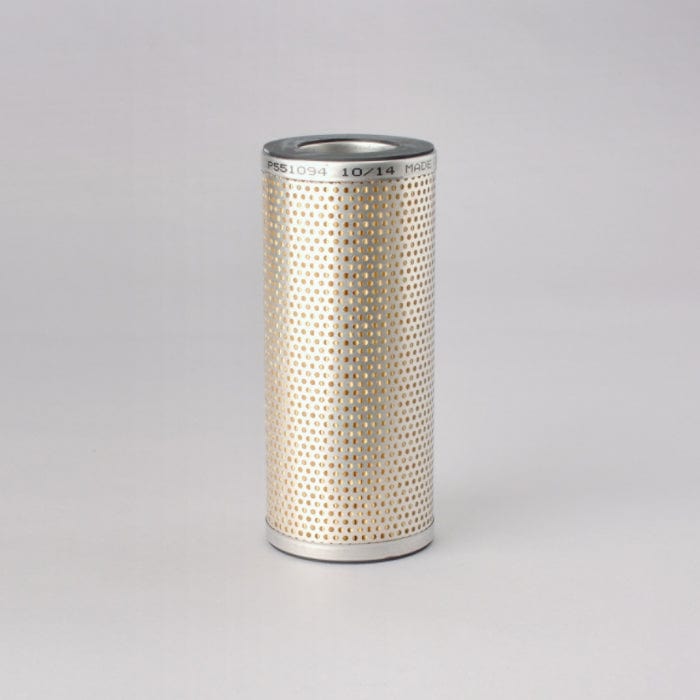

Hydraulic Filter, Cartridge - Donaldson P551094
Hydraulic Filter, Cartridge - Donaldson P551094
Regular price
Ā£14.48
Regular price
Sale price
Ā£14.48
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551094
Hydraulic Filter, Cartridge| Outer Diameter | 4.00 inch (101.6 mm) |
| Inner Diameter | 2.30 inch (58.4 mm) |
| Length | 9.13 inch (232 mm) |
| Gasket OD | 3.86 inch (98 mm) |
| Gasket ID | 2.30 inch (58.4 mm) |
| Overall Length | 9.25 inch (235 mm) |
| Efficiency Beta 2 | 9 micron |
| Efficiency Beta 1000 | 26 micron |
| Collapse Burst | 150 psi (10.34 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 101.6 mm (4.00 inch)
- Inner Diameter: 58.4 mm (2.30 inch)
- Length: 232 mm (9.13 inch)
- Gasket OD: 98 mm (3.86 inch)
- Gasket ID: 58.4 mm (2.30 inch)
- Overall Length: 235 mm (9.25 inch)
- Efficiency Beta 2: 9 micron
- Efficiency Beta 1000: 26 micron
- Collapse Burst: 10.34 bar (150 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.099 m (3.95 inch)
- Packaged Width: 0.099 m (3.95 inch)
- Packaged Height: 0.239 m (9.55 inch)
- Packaged Weight: 0.540 kg (1.19 lb)
- Packaged Volume: 0.002 m3 (0.09 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330983904
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 92167 | |
| CATERPILLAR | 1R0773 | Cellulose media version. 164200 is synthetic media version. |
| VICKERS | 941411 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 789C | - | HAUL TRUCK | - | CATERPILLAR 3516TA | - |
