Hydraulic Filter, Cartridge - Donaldson P550925
Hydraulic Filter, Cartridge - Donaldson P550925
Regular price
Ā£95.26
Regular price
Sale price
Ā£95.26
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

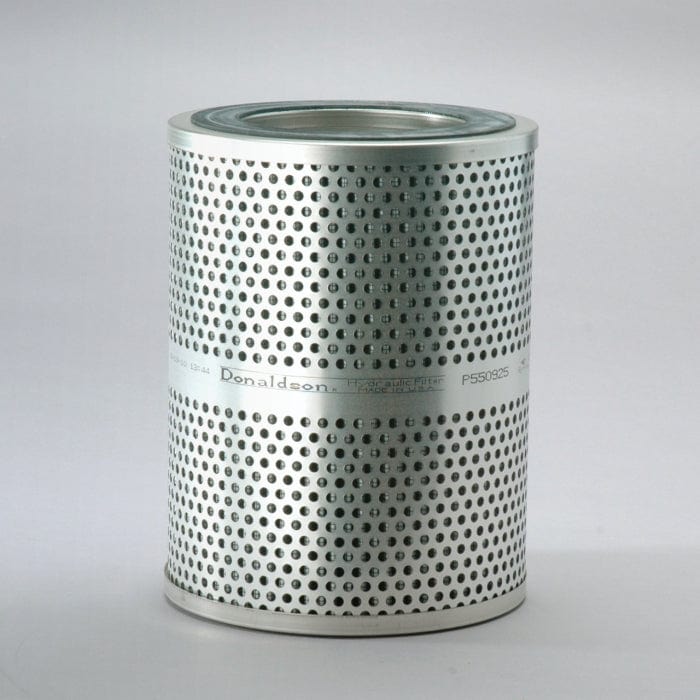

Donaldson P550925
Hydraulic Filter, CartridgeShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 173.8 mm (6.84 inch)
- Inner Diameter: 107.3 mm (4.22 inch)
- Length: 225.6 mm (8.88 inch)
- Gasket OD: 152.4 mm (6.00 inch)
- Gasket ID: 107.4 mm (4.23 inch)
- Overall Length: 228.6 mm (9.00 inch)
- Efficiency Beta 200: 18 micron
- Efficiency Beta 1000: 23 micron
- Collapse Burst: 10 bar (145 psi)
- Style: Cartridge
- Media Type: Synthetic
- Primary Application: CATERPILLAR 2492337
Packaged Dimensions
- Packaged Length: 0.185 m (7.40 inch)
- Packaged Width: 0.183 m (7.30 inch)
- Packaged Height: 0.243 m (9.70 inch)
- Packaged Weight: 2.002 kg (4.41 lb)
- Packaged Volume: 0.008 m3 (0.30 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330200537
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 2492337 | |
| WALGAHN-MOTORENTECHN | 811009 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 587R | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3406C DITA | - |
| CATERPILLAR 587T | - | PIPE LAYER | 500 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 789C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 793D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR D10T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C27 ACERT | - |
| CATERPILLAR D11T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C32 ACERT | - |
| CATERPILLAR PL87 | - | PIPE LAYER | PL SERIES | CATERPILLAR C15 ACERT | - |
