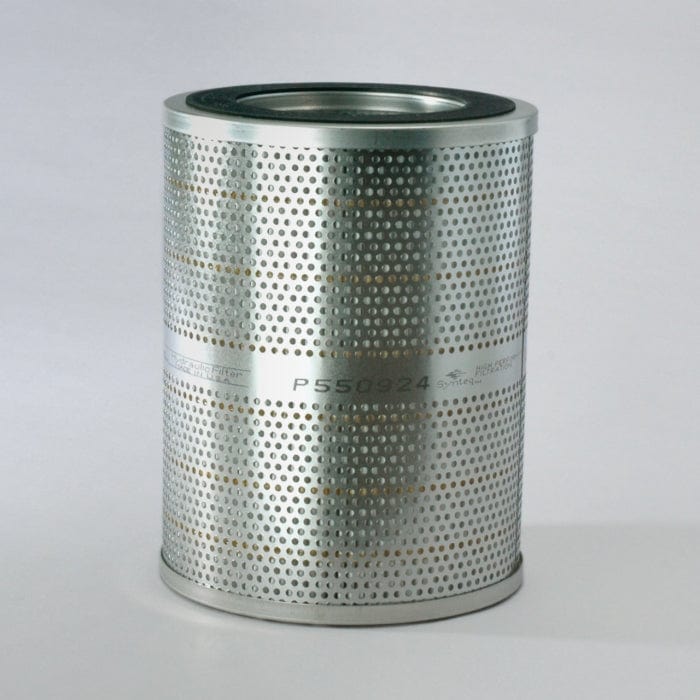

Hydraulic Filter, Cartridge - Donaldson P550924
Hydraulic Filter, Cartridge - Donaldson P550924
Regular price
Ā£84.38
Regular price
Sale price
Ā£84.38
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550924
Hydraulic Filter, Cartridge| Outer Diameter | 6.84 inch (173.8 mm) |
| Inner Diameter | 4.22 inch (107.3 mm) |
| Length | 8.88 inch (225.6 mm) |
| Gasket OD | 6.00 inch (152.4 mm) |
| Overall Length | 9.00 inch (228.6 mm) |
| Efficiency Beta 1000 | 9 micron |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Cartridge |
| Media Type | Synteq XP |
| Primary Application | CATERPILLAR 1672009 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 173.8 mm (6.84 inch)
- Inner Diameter: 107.3 mm (4.22 inch)
- Length: 225.6 mm (8.88 inch)
- Gasket OD: 152.4 mm (6.00 inch)
- Overall Length: 228.6 mm (9.00 inch)
- Efficiency Beta 1000: 9 micron
- Collapse Burst: 6.9 bar (100 psi)
- Style: Cartridge
- Media Type: Synteq XP
- Primary Application: CATERPILLAR 1672009
Packaged Dimensions
- Packaged Length: 0.183 m (7.30 inch)
- Packaged Width: 0.183 m (7.30 inch)
- Packaged Height: 0.245 m (9.80 inch)
- Packaged Weight: 1.657 kg (3.65 lb)
- Packaged Volume: 0.008 m3 (0.30 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330200520
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 1672009 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 225 | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 225B | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 229 | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3208 | - |
| CATERPILLAR 589 | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3408 | - |
| CATERPILLAR 797 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TAE | - |
| CATERPILLAR 797B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3524B | - |
| CATERPILLAR 834B | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3408TA | - |
| CATERPILLAR 834G | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3456CE | - |
| CATERPILLAR 834H | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 836 | - | COMPACTOR | 800 SERIES | CATERPILLAR 3408 | - |
| CATERPILLAR 836G | - | COMPACTOR | 800 SERIES | CATERPILLAR 3456 | - |
| CATERPILLAR 836H | - | COMPACTOR | 800 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 988B | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3408 | - |
| CATERPILLAR 988F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3408 DITA | - |
| CATERPILLAR 988F II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3408E DITA | - |
| CATERPILLAR 988G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3456CE1 | - |
| CATERPILLAR 988H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 992C | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3412 | - |
| CATERPILLAR 992D | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3412 | - |
| CATERPILLAR D11N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR D11R | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR D11R CD | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3508B | - |
