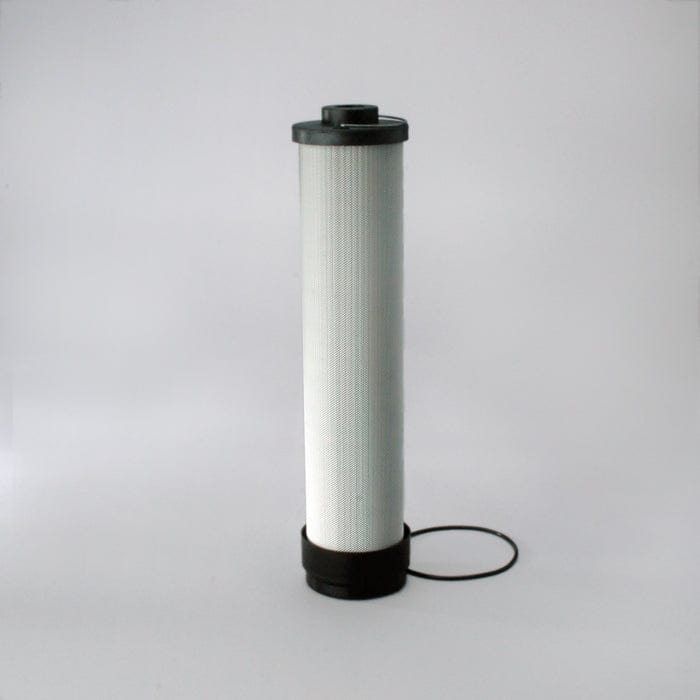

Hydraulic Filter, Cartridge - Donaldson P550827
Hydraulic Filter, Cartridge - Donaldson P550827
Regular price
Ā£139.58
Regular price
Sale price
Ā£139.58
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550827
Hydraulic Filter, Cartridge| Outer Diameter | 3.72 inch (94.5 mm) |
| Inner Diameter | 1.58 inch (40.1 mm) |
| Length | 16.14 inch (410 mm) |
| Efficiency Beta 200 | 5 micron |
| Efficiency Beta 1000 | 7 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 87 psi (6 bar) |
| Collapse Burst | 435 psi (30 bar) |
| Style | Cartridge |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 94.5 mm (3.72 inch)
- Inner Diameter: 40.1 mm (1.58 inch)
- Length: 410 mm (16.14 inch)
- Efficiency Beta 200: 5 micron
- Efficiency Beta 1000: 7 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 6 bar (87 psi)
- Collapse Burst: 30 bar (435 psi)
- Style: Cartridge
Packaged Dimensions
- Packaged Length: 0.138 m (5.51 inch)
- Packaged Width: 0.128 m (5.12 inch)
- Packaged Height: 0.423 m (16.93 inch)
- Packaged Weight: 1.308 kg (2.88 lb)
- Packaged Volume: 0.008 m3 (0.28 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-02
- HTS Code: 8421298090
- UPC Code: 742330193037
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| SENNEBOGEN | 054523 | |
| SENNEBOGEN | 150309 | Std media version (not anti-ESD) |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| SENNEBOGEN 825M | - | MATERIAL HANDLER | - | CUMMINS QSB6.7 | - |
| SENNEBOGEN 870 | - | MATERIAL HANDLER | - | - 870 | - |
