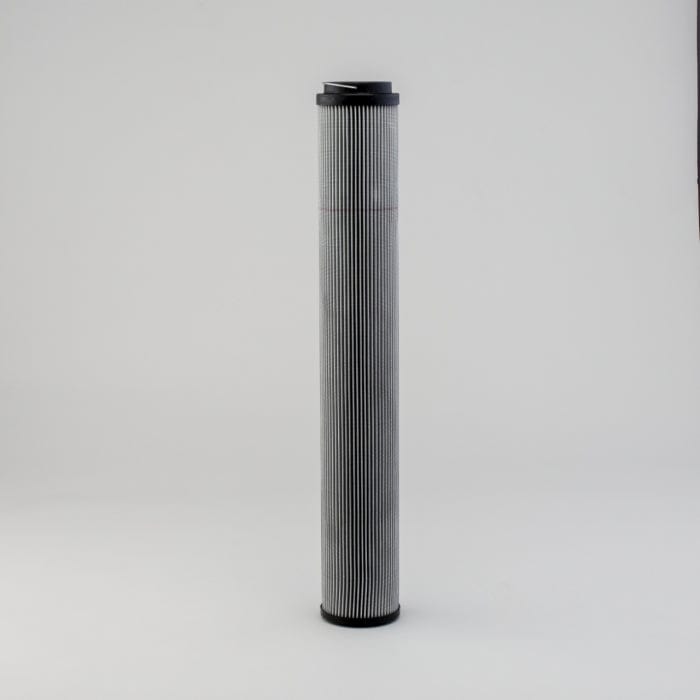

Hydraulic Filter, Cartridge - Donaldson P550826
Hydraulic Filter, Cartridge - Donaldson P550826
Regular price
Ā£149.78
Regular price
Sale price
Ā£149.78
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550826
Hydraulic Filter, Cartridge| Outer Diameter | 3.72 inch (94.5 mm) |
| Inner Diameter | 1.90 inch (48.26 mm) |
| Length | 24.61 inch (625.2 mm) |
| Efficiency Beta 2 | 4 micron |
| Efficiency Beta 20 | 12 micron |
| Efficiency Beta 1000 | 5 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 87 psi (6 bar) |
| Collapse Burst | 435 psi (30 bar) |
| Style | Cartridge |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 94.5 mm (3.72 inch)
- Inner Diameter: 48.26 mm (1.90 inch)
- Length: 625.2 mm (24.61 inch)
- Efficiency Beta 2: 4 micron
- Efficiency Beta 20: 12 micron
- Efficiency Beta 1000: 5 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 6 bar (87 psi)
- Collapse Burst: 30 bar (435 psi)
- Style: Cartridge
Packaged Dimensions
- Packaged Length: 0.111 m (4.44 inch)
- Packaged Width: 0.111 m (4.44 inch)
- Packaged Height: 0.741 m (29.64 inch)
- Packaged Weight: 1.993 kg (4.39 lb)
- Packaged Volume: 0.009 m3 (0.33 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 133320
- HTS Code: 8421298090
- UPC Code: 742330193020
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BAUER | 225609 | |
| SENNEBOGEN | 150307 | |
| SENNEBOGEN | 027417 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| SENNEBOGEN 825M | - | MATERIAL HANDLER | - | CUMMINS QSB6.7 | - |
| SENNEBOGEN 870 | - | MATERIAL HANDLER | - | - 870 | - |
