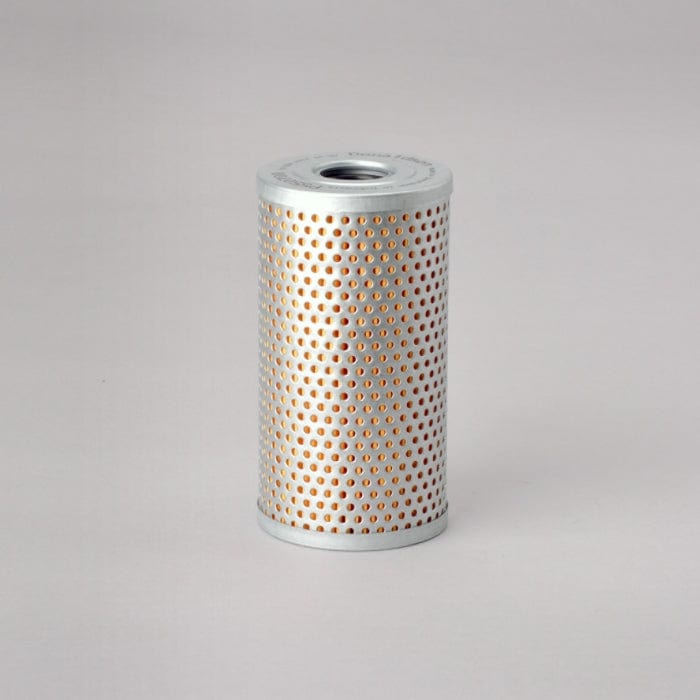

Hydraulic Filter, Cartridge - Donaldson P550700
Hydraulic Filter, Cartridge - Donaldson P550700
Regular price
£9.01
Regular price
Sale price
£9.01
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550700
Hydraulic Filter, Cartridge| Outer Diameter | 3.03 inch (76.96 mm) |
| Inner Diameter | 1.02 inch (25.91 mm) |
| Length | 5.67 inch (144 mm) |
| Efficiency Beta 2 | 13 micron |
| Efficiency Beta 20 | 27 micron |
| Style | Cartridge |
| Media Type | Cellulose |
| Primary Application | CATERPILLAR 2P5834 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 76.96 mm (3.03 inch)
- Inner Diameter: 25.91 mm (1.02 inch)
- Length: 144 mm (5.67 inch)
- Efficiency Beta 2: 13 micron
- Efficiency Beta 20: 27 micron
- Style: Cartridge
- Media Type: Cellulose
- Primary Application: CATERPILLAR 2P5834
Packaged Dimensions
- Packaged Length: 0.089 m (3.54 inch)
- Packaged Width: 0.089 m (3.54 inch)
- Packaged Height: 0.158 m (6.30 inch)
- Packaged Weight: 0.327 kg (0.72 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-07
- HTS Code: 8421298090
- UPC Code: 742330042984
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALLIS-CHALMERS | 2460855 | |
| ALLIS-CHALMERS | 2698421 | |
| ALLIS-CHALMERS | 269842 | |
| AMERICAN MOTORS CORPORATION | SFH5834 | |
| BIG A | 92420 | |
| BIG A | 875 | |
| CASE/CASE IH | A20902 | |
| CATERPILLAR | 2P5834 | |
| CATERPILLAR | 1R0730 | |
| CATERPILLAR | 1261810 | |
| CLARK | 207930036 | |
| CLARK | 1550927 | |
| COMPACTION AMERICA | 0147463 | |
| COOP | PL51420 | |
| DELUXE | WD456 | |
| EXMAN | SFH5834 | |
| FIAT | 3016393 | |
| FIAT | 246085 | |
| FIAT | 70246085 | |
| FIL | ML1235 | |
| FILT | O10315 | |
| FSA | FO1927 | |
| GOULD | P456 | |
| GREYFRIARS | 573P | |
| HANCOCK | 207930036 | |
| HAVAM | HD0700 | |
| HYSTER | 14746312 | |
| HYSTER | 147460 | |
| LOCKHEED | APH3183A | |
| TIM | 2P5834 | |
| VMC | HF550700 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ALLIS-CHALMERS 7040 | - | TRACTOR | - | - 7040 | - |
| ALLIS-CHALMERS 7060 | - | TRACTOR | - | ALLIS-CHALMERS 670I | - |
| CASE/CASE IH 1030CK | - | TRACTOR | - | - 1030CK | - |
| CATERPILLAR 578 | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3406B | - |
| CATERPILLAR 916 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 926 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204T | - |
| CATERPILLAR 930R | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 931B | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 931B LGP | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 931C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 931C II | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 931C LGP | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 935B | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 935C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 935C II | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 936 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 DIT | - |
| CATERPILLAR 936E | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 DIT | - |
| CATERPILLAR 936F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 939 | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR 950B | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 950E | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D10N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3412 | - |
| CATERPILLAR D10R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3412E | - |
| CATERPILLAR D3B | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D3C | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D3C II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D3C III | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR D4B | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D4C | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D4C II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D4C III | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR D4H | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D4H II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D4H III | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D4H LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D5C | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR D5C III | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR D5C LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR D5H | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D5H II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D5H LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D5H XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D6H | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II XR | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7H II LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7H II XR | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7H LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7H XR | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7R | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D7R LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D7R XR | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D8N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR D8R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR D9L | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3412 | - |
| CATERPILLAR D9N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3408 | - |
| CATERPILLAR D9R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3408E | - |
| CATERPILLAR G916 | - | LOADER WHEELED | G SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR G936 | - | LOADER WHEELED | G SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR IT12 | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT18 | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT18B | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT28 | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT28B | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| HYSTER WINCH | - | FORKLIFT | - | - WINCH | - |
