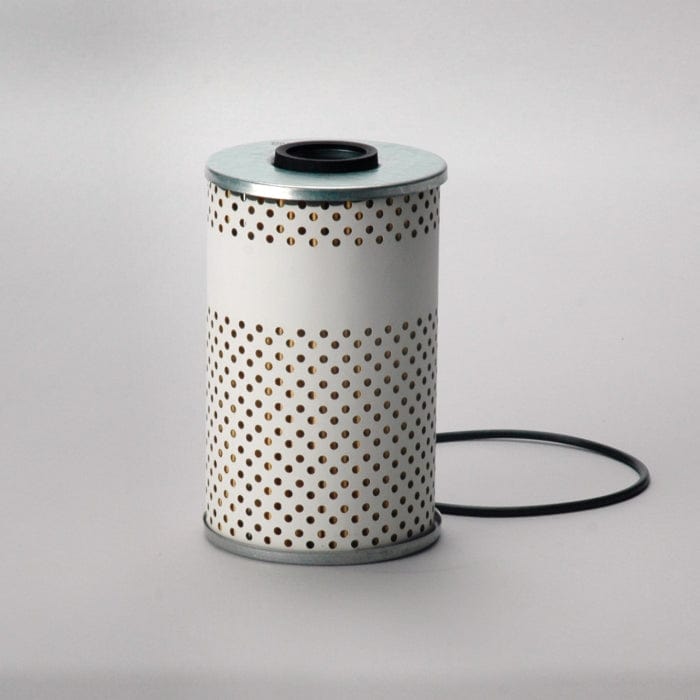

Hydraulic Filter, Cartridge - Donaldson P550694
Hydraulic Filter, Cartridge - Donaldson P550694
Regular price
Ā£9.80
Regular price
Sale price
Ā£9.80
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550694
Hydraulic Filter, Cartridge| Outer Diameter | 3.48 inch (88.4 mm) |
| Inner Diameter | 1.14 inch (29 mm) |
| Length | 5.59 inch (142 mm) |
| Efficiency Beta 2 | 17 micron |
| Collapse Burst | 35 psi (2.4 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 88.4 mm (3.48 inch)
- Inner Diameter: 29 mm (1.14 inch)
- Length: 142 mm (5.59 inch)
- Efficiency Beta 2: 17 micron
- Collapse Burst: 2.4 bar (35 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.088 m (3.51 inch)
- Packaged Width: 0.088 m (3.51 inch)
- Packaged Height: 0.146 m (5.85 inch)
- Packaged Weight: 0.330 kg (0.73 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330089705
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1089 | |
| AMERICAN PARTS | 2099 | |
| AMERICAN PARTS | 92262 | |
| AVELING-BARFORD | MG5603009T | |
| BENATI | 3212187 | |
| BIG A | 2099 | |
| BIG A | 92262 | |
| CASE/CASE IH | D52932 | |
| CASE/CASE IH | L33568 | |
| CASE/CASE IH | 52932 | |
| CLARK | 233396 | |
| CLARK | 234092 | |
| CLARK | 237313 | |
| CLARK | 230962 | |
| COLES-GROVE | 8782070 | |
| COOPERS | HEM6012 | |
| FAUN | 7394224 | |
| FIAT | 1004922 | |
| FIAT | 10049229 | |
| FIAT | 71004922 | |
| FINN EQUIPMENT | FFP233 | |
| FORD | D3NN7C045A | |
| GALION | D106346 | |
| GALION | 106346 | |
| GREYFRIARS | GHF7125 | |
| HEDEN | 29501509 | |
| HITACHI | 70112135 | |
| INTERNATIONAL | 630939C91 | |
| JCB | 230962 | |
| JOHN DEERE | AT49249 | |
| KALMAR | 9210970001 | |
| KALMAR | 1336198 | |
| KOMATSU | 106346 | |
| KRALINATOR | L688 | |
| LINDE | T761001008 | |
| LINDE | T055001195 | |
| MASSEY FERGUSON | 1088695M91 | |
| MICHIGAN | 230962 | |
| NEW HOLLAND | D3NN7C045A | |
| ORENSTEIN & KOPPEL | 760537 | |
| P.B.R. | AC3170 | |
| POCLAIN | D0950547 | |
| TAYLOR | 4045001 | |
| TIMBERJACK | 8424159 | |
| VALMET | 5009141 | |
| VALMET | 480178 | |
| VALMET | 800811298 | |
| VMC | HF550694 | |
| VMC | LF550694 | |
| VME | M0230962 | |
| VOLVO | M0230962 | |
| VOLVO | 230962 | |
| WABCO | DA0921 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH W36 | - | LOADER WHEELED | - | - W36 | - |
| CLARK 110-9B | - | SCRAPER | - | - 110-9B | - |
| FORD 755 | - | TRACTOR | - | - 755 | - |
| JOHN DEERE 762 | - | SCRAPER | - | - 762 | - |
| KALMAR DCD120-12 | - | FORKLIFT | DCD SERIES | PERKINS 1006.6 | - |
| KALMAR DCD120-6 | - | FORKLIFT | DCD SERIES | CUMMINS 6BTA5.9 | - |
| KALMAR DCD136-6 | - | FORKLIFT | DCD SERIES | CUMMINS 6BTA5.9 | - |
| KALMAR DCD160-12 | - | FORKLIFT | DCD SERIES | CUMMINS 6BTA5.9 | - |
| KALMAR DCD160-6 | - | FORKLIFT | DCD SERIES | CUMMINS 6BTA5.9 | - |
| KALMAR DCD160-9 | - | FORKLIFT | DCD SERIES | PERKINS 1006.6 | - |
| KALMAR DCD180-6 | - | FORKLIFT | DCD SERIES | CUMMINS 6BTA5.9 | - |
| KALMAR DCD90-6 | - | FORKLIFT | DCD SERIES | PERKINS 1006.6 | - |
