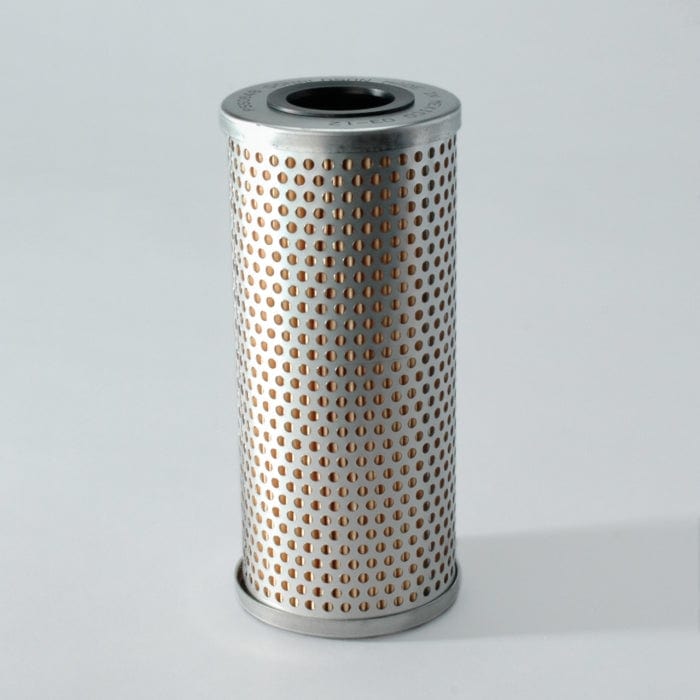

Hydraulic Filter, Cartridge - Donaldson P550648
Hydraulic Filter, Cartridge - Donaldson P550648
Regular price
Ā£18.32
Regular price
Sale price
Ā£18.32
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550648
Hydraulic Filter, Cartridge| Outer Diameter | 4.04 inch (102.6 mm) |
| Inner Diameter | 1.78 inch (45.2 mm) |
| Length | 9.02 inch (229 mm) |
| Gasket OD | 2.50 inch (63.5 mm) |
| Gasket ID | 1.78 inch (45.2 mm) |
| Efficiency Beta 20 | 23 micron |
| Efficiency Beta 1000 | 26 micron |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
| Primary Application | KOMATSU 4241611140 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 102.6 mm (4.04 inch)
- Inner Diameter: 45.2 mm (1.78 inch)
- Length: 229 mm (9.02 inch)
- Gasket OD: 63.5 mm (2.50 inch)
- Gasket ID: 45.2 mm (1.78 inch)
- Efficiency Beta 20: 23 micron
- Efficiency Beta 1000: 26 micron
- Collapse Burst: 6.9 bar (100 psi)
- Style: Cartridge
- Media Type: Cellulose
- Primary Application: KOMATSU 4241611140
Packaged Dimensions
- Packaged Length: 0.118 m (4.72 inch)
- Packaged Width: 0.118 m (4.72 inch)
- Packaged Height: 0.236 m (9.45 inch)
- Packaged Weight: 0.780 kg (1.72 lb)
- Packaged Volume: 0.003 m3 (0.12 ft3)
Other Information
- Country of Origin: Italy
- HTS Code: 8421298090
- UPC Code: 742330160787
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 1010002C1 | |
| DRESSER | 4241611140 | |
| KOMATSU | 4241611140 | |
| KOMATSU | 4191514800 |
